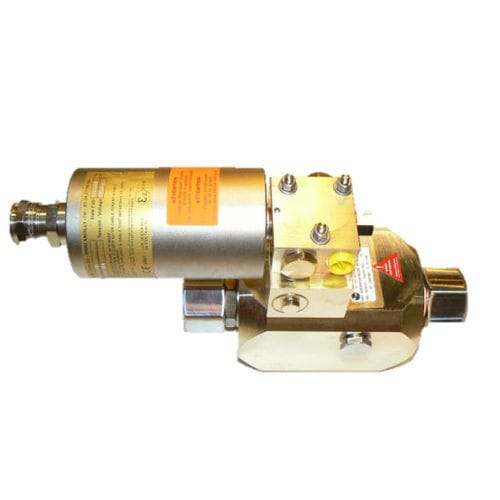

Pilot-operated solenoid valve E0533/2-wayNCNO
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 3/2-way
- Function
- NC, NO
- Medium
- for gas
- Body
- seat, stainless steel, aluminium
- DN
Max.: 36 mm
(1.417 in)Min.: 25 mm
(0.984 in)- Pressure
Max.: 400 bar
(5,801.5 psi)Min.: 250 bar
(3,625.9 psi)
Description
Internal Tighteness : Mini 10-3 mbar.l/s en helium (Valve / Seat)
External Tightness : Mini 10-4 mbar.l/s en helium
Kv value for one bar pressure loss accros =ΔP = 1 bar :
- Internal diameter Ø 25 mm : KV = 14,3
- Internal diameter Ø 36 mm : KV = 29,6
To fullfill specific application , material comptibility , explosion encvironnement etc..
