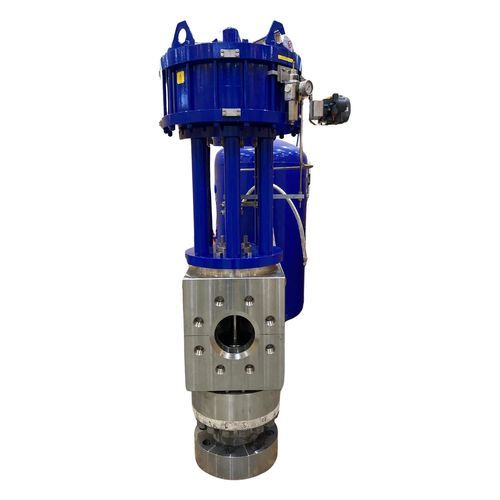

Globe valve BEU Urea+

pneumaticfor controlfor chemicals

Overview BEU Urea+ control valve is engineered for urea fertiliser and carbamate production, providing precise flow control in severe-service conditions. The internal trim and flow path eliminate dead zones and include an anti-crystallisation geometry to reduce fouling and maintain stable operation. Constructed from high-alloy, corrosion-resistant materials, the valve is suitable for aggressive process media and designed for simplified maintenance access.

Primary benefits

• No dead zone design prevents crystallisation and clogging
• High-alloy materials and alloy-based trim coatings resist aggressive process media
• Live-loaded packing and EEEasy-seal™ options minimise leakage and maintenance

Key features

• Specialised packing design: live-loaded or EEEasy-seal™
• Unique trim geometry to avoid crystallisation and fouling
• Alloy-based coatings on trim parts to extend service life
• No-dead-zone internal flow path
• High-alloy, corrosion-resistant body and internals
• Top-entry design for in-line maintenance
• Compatibility with various actuator types (pneumatic standard)
• Over-plug or under-plug flow arrangements
• Flanged ends: DIN 2696 lens ring gaskets or ASME B16.5 / EN 1092-1
• Leakage performance to ANSI/FCI 70-2 and EN 60534-4 Class IV or V

Specifications (table) Design Codes: ASME B16.34; EN 12516-2
Certification: PED
Material: UNS S32906; 1.4477 / F55; 1.4501 / F51; 1.4462 / F61; 1.4507 / 316L Mod; 1.4435 / 310MoLN; 1.4466; Titanium; SAF2906
Max. ASME Rating: 2500
Temperature Limits (°C): -30 to 260
Actuator Type: Pneumatic (compatible with other actuator types)
Fluid Types: Liquid; Urea solution; Carbamate
Trim Category: Single-stage; Multi-stage
Service Category: Severe

Technical specifications

• Design Codes: ASME B16.34; EN 12516-2
• Certification: PED
• Materials: UNS S32906; 1.4477 (F55); 1.4501 (F51); 1.4462 (F61); 1.4507 (316L Mod); 1.4435 (310MoLN); 1.4466; Titanium; SAF2906
• Maximum ASME rating: 2500
• Temperature limits: -30 °C to 260 °C
• Actuator type: Pneumatic (compatible with various actuator types)
• Fluid types: Liquids including urea solution and carbamate
• Trim options: single-stage or multi-stage; alloy-based trim coatings to extend life
• Packing/sealing options: live-loaded packing and EEEasy-seal™ to minimise leakage
• Service category: Severe service
• Flanged ends: DIN 2696 lens ring gaskets or ASME B16.5 and EN 1092-1
• Leakage performance: ANSI/FCI 70-2 and EN 60534-4 Class IV or Class V
