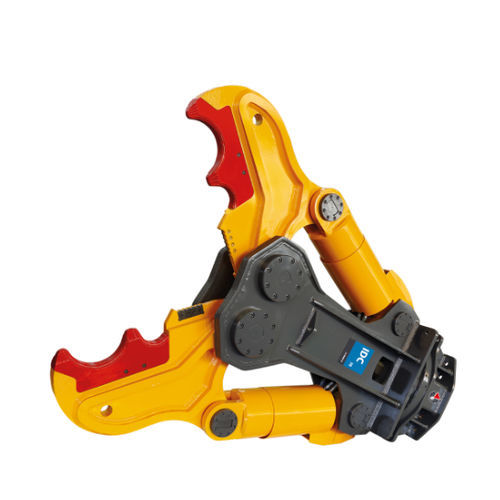

Primary demolition hydraulic crusher IDC 70

for excavatorsrotary

Product overview

• Primary demolition crusher for tracked excavators
• Model: IDC 70
• Compatible with breakers: HP 7000 - HP 9000

Key features

• Large jaw opening (1800 mm) for primary demolition tasks
• High tip force (180 ton) and force class 800 ton
• Continuous hydraulic rotation and quick cycle times
• Designed for mounting on tracked excavators with Indeco-compatible attachment plate

Technical specifications

• Min. excavator weight, bucket position*: 65 ton
• Operating weight of equipment: 7200 Kg
• Maximum working pressure: 350 bar
• Maximum oil delivery: 300 ÷ 550 l/min
• Maximum rotation oil flow: 50 l/min
• Maximum rotation pressure: 150 bar
• Maximum force at tip: 180 ton
• Force class: 800 ton
• Length: 3350 mm
• Width: 610 mm
• Maximum jaw opening: 1800 mm
• Jaw depth: 1300 mm
• Cutter blade length: 200 mm
• Closing time when empty: 5 ÷ 7 s
• Opening time when empty: 3 ÷ 4 s
• Max cutting diameter: 70 mm
• Compatibility of attachment plate with hammer: HP 7000 - HP 9000
• Type of carrier: Tracked excavator

Notes
* The operating weight of the equipment includes the mounting plate compatible with Indeco construction standards. Any differences in weight may be due to a different mounting plate configuration. N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We reserve the right to modify them for product improvement and development.
