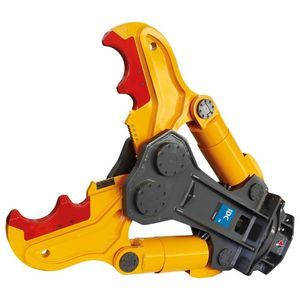

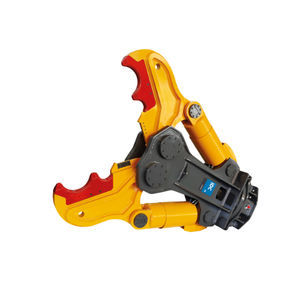

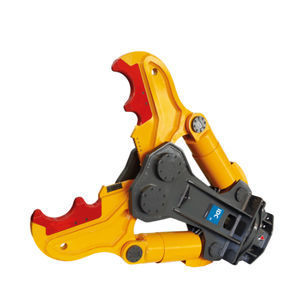

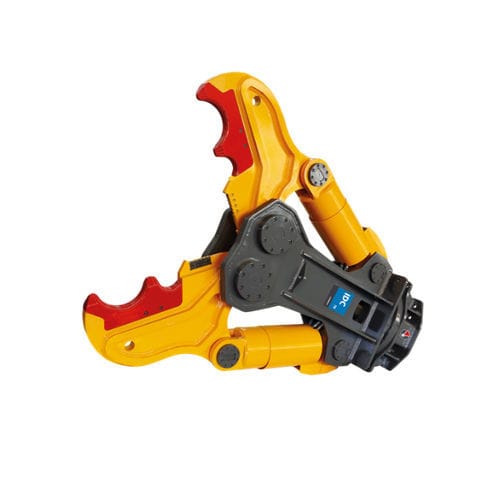

Primary demolition hydraulic crusher IDC 42

for concretefor excavators

Product
Primary demolition crusher IDC 42 for primary reduction of reinforced concrete, masonry and other demolition material. Designed for installation on wheeled or tracked excavators; recommended minimum carrier weight: 40 ton.

Technical specifications (table)
Min. excavator weight, bucket position*: 40 ton
Operating weight of equipment: 4400 Kg
Maximum working pressure: 350 bar
Maximum oil delivery: 250 ÷ 350 l/min
Maximum rotation oil flow: 40 l/min
Maximum rotation pressure: 120 bar
Maximum force at tip: 135 ton
Force class: 630 ton
Length: 2900 mm
Width: 520 mm
Maximum jaw opening: 1500 mm
Jaw depth: 1100 mm
Cutter blade length: 180 mm
Closing time when empty: 3.5 ÷ 4.5 s
Opening time when empty: 3 ÷ 4 s
Max cutting diameter: 60 mm
Compatibility of attachment plate with hammer: HP 7000
Type of carrier: Wheeled excavator - Tracked excavator

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.

Technical specifications

• Min. excavator weight, bucket position*: 40 ton
• Operating weight of equipment: 4400 Kg
• Maximum working pressure: 350 bar
• Maximum oil delivery: 250 ÷ 350 l/min
• Maximum rotation oil flow: 40 l/min
• Maximum rotation pressure: 120 bar
• Maximum force at tip: 135 ton
• Force class: 630 ton
• Length: 2900 mm
• Width: 520 mm
• Maximum jaw opening: 1500 mm
• Jaw depth: 1100 mm
• Cutter blade length: 180 mm
• Closing time when empty: 3.5 ÷ 4.5 s
• Opening time when empty: 3 ÷ 4 s
• Max cutting diameter: 60 mm
• Compatibility of attachment plate with hammer: HP 7000
• Type of carrier: Wheeled excavator - Tracked excavator
