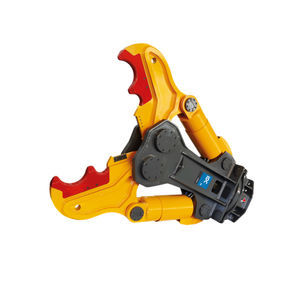

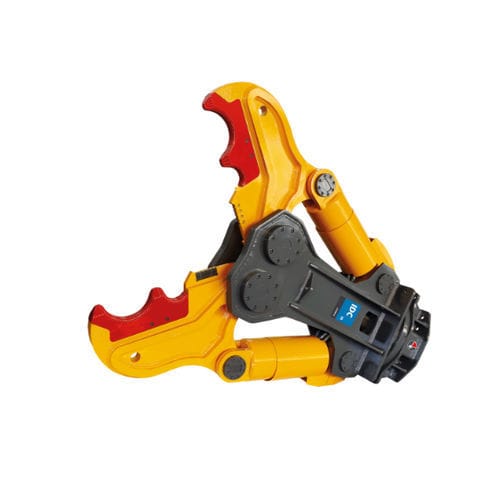

Primary demolition hydraulic crusher IDC 16

for excavators

Product
PRIMARY DEMOLITION CRUSHER - IDC 16

Overview
Primary demolition crusher designed for heavy demolition operations. Suitable for wheeled and tracked excavators. Operating weight includes mounting bracket compatible with Indeco standards.

TECHNICAL SPECIFICATIONS (table)
Min. excavator weight, bucket position*: 13 ton
Operating weight of equipment: 1600 Kg
Maximum working pressure: 350 bar
Maximum oil delivery: 150–250 l/min
Maximum rotation oil flow: 20 l/min
Maximum rotation pressure: 110 bar
Maximum force at tip: 72 ton
Force class: 330 ton
Length: 1900 mm
Width: 360 mm
Maximum jaw opening: 1000 mm
Jaw depth: 700 mm
Cutter blade length: 120 mm
Closing time when empty: 3.5–5.5 s
Opening time when empty: 1.5–2.5 s
Max cutting diameter: 45 mm
Compatibility of attachment plate with hammer: HP 2000
Type of carrier: Wheeled excavator - Tracked excavator

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.
