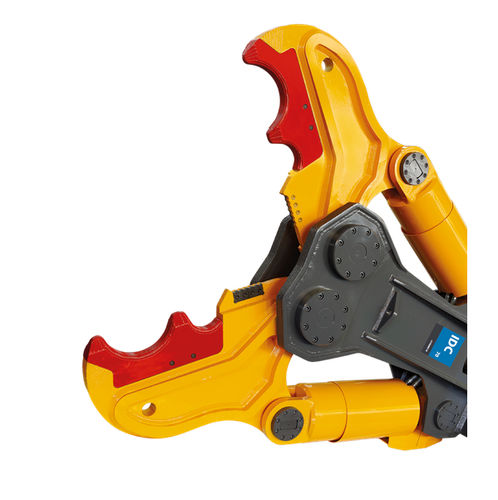

Primary demolition hydraulic crusher IDC 21

for concretefor excavators

Product
PRIMARY DEMOLITION CRUSHER

Model
IDC 21

Typology
Primary demolition crusher designed for primary reduction in demolition and recycling of concrete and reinforced structures.

Technical Specifications
Min. excavator weight, bucket position*: 20 t
Operating weight of equipment: 2300 kg
Maximum working pressure: 350 bar
Maximum oil delivery: 150 ÷ 250 l/min
Maximum rotation oil flow: 30 l/min
Maximum rotation pressure: 110 bar
Maximum force at tip: 90 t
Force class: 420 t
Length: 2350 mm
Width: 440 mm
Maximum jaw opening: 1150 mm
Jaw depth: 750 mm
Cutter blade length: 150 mm
Closing time when empty: 4 ÷ 5 s
Opening time when empty: 2 ÷ 3 s
Max cutting diameter: 50 mm
Compatibility of attachment plate with hammer: HP 3000
Type of carrier: Tracked excavator

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.
