Primary demolition demolition crusher IDC 30

for excavators

Product

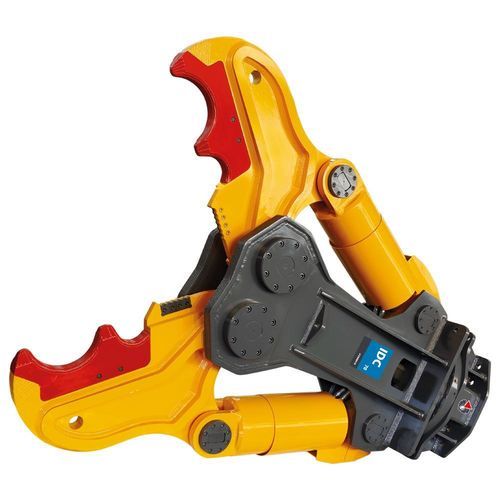

Primary demolition crusher
IDC 30
Primary demolition crusher for attachment to wheeled or tracked excavators.

Technical specifications (page)
Min. excavator weight, bucket position*: 28 t
Operating weight of equipment: 3000 kg
Maximum working pressure: 350 bar
Maximum oil delivery: 200 ÷ 300 l/min
Maximum rotation oil flow: 30 l/min
Maximum rotation pressure: 120 bar
Maximum force at tip: 110 t
Force class: 495 t
Length: 2550 mm
Width: 460 mm
Maximum jaw opening: 1300 mm
Jaw depth: 950 mm
Cutter blade length: 160 mm
Closing time when empty: 3 ÷ 4.5 s
Opening time when empty: 2.5 ÷ 4 s
Max cutting diameter: 55 mm
Compatibility of attachment plate with hammer: HP 5000
Type of carrier: Wheeled excavator - Tracked excavator

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.

N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.

Technical characteristics / specifications

• Min. excavator weight, bucket position*: 28 t
• Operating weight of equipment: 3000 kg
• Maximum working pressure: 350 bar
• Maximum oil delivery: 200 ÷ 300 l/min
• Maximum rotation oil flow: 30 l/min
• Maximum rotation pressure: 120 bar
• Maximum force at tip: 110 t
• Force class: 495 t
• Length: 2550 mm
• Width: 460 mm
• Maximum jaw opening: 1300 mm
• Jaw depth: 950 mm
• Cutter blade length: 160 mm
• Closing time when empty: 3 ÷ 4.5 s
• Opening time when empty: 2.5 ÷ 4 s
• Max cutting diameter: 55 mm
• Compatibility of attachment plate with hammer: HP 5000
• Type of carrier: Wheeled excavator - Tracked excavator
