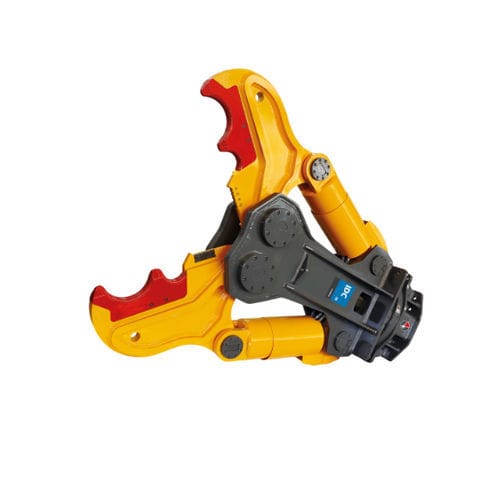

Primary demolition hydraulic crusher IDC 11

for concretefor excavators

Product
Primary demolition crusher designed for primary demolition and concrete processing. Model: IDC 11. Compatible with wheeled and tracked excavators.

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.

Technical specifications

• Min. excavator weight, bucket position*: 10 ton
• Operating weight of equipment: 1400 Kg
• Maximum working pressure: 350 bar
• Maximum oil delivery: 100 ÷ 200 l/min
• Maximum rotation oil flow: 15 l/min
• Maximum rotation pressure: 110 bar
• Maximum force at tip: 55 ton
• Force class: 225 ton
• Length: 1700 mm
• Width: 300 mm
• Maximum jaw opening: 850 mm
• Jaw depth: 600 mm
• Cutter blade length: 120 mm
• Closing time when empty: 2,5 ÷ 4,5 s
• Opening time when empty: 1,5 ÷ 2,5 s
• Max cutting diameter: 40 mm
• Compatibility of attachment plate with hammer: HP 1200
• Type of carrier: Wheeled excavator - Tracked excavator
