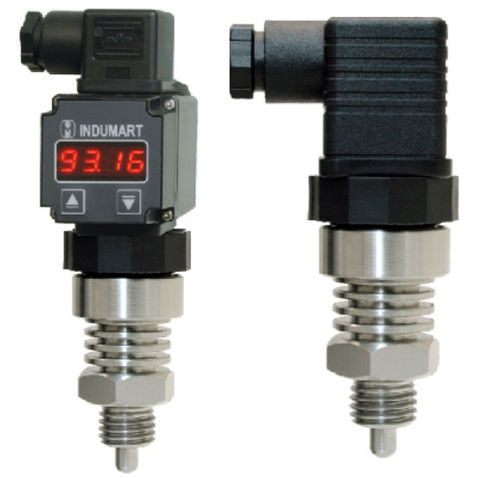

Pt100 temperature transmitter TMT series

2-wiredigital4-20 mA

4-20 mA, 2-WIRE OUTPUT Pt100 SENSING ELEMENT EASY & FAST CONNECTION VIBRATION-PROOF DESIGN WATERPROOF - IP65 PROTECTION LOCAL INDICATOR WITHOUT OR WITH TWO OPTO CONTACTS (OPTION) INTRODUCTION The new compact TMT45Temperature Transmitter with RTD Probe replaces expensive assemblies comprisingRTD probe, terminal block, probe head and thetemperature transmitter. Robust vibration-proof design, IP65 protection class and protected electronics by themeans of a special compound, result into an excep-tional probe; ideal for withstanding harsh environments. Being very compact and definitely an economicalapproach to temperature measurement are otheradvantages of theTMT45. Utilizing theTMT45eliminates the use of stainless steel probe heads infood and sanitary industries, and thanks to their smalldimensions, these temperature probes are applicable incars, trains, construction machineries and otherequipments, where space is limited. The stainless steelTMT45 sensors can be ordered inseveral ranges from -50° to 200°C. Various processconnections as well as stem lengths from 2 to 30 cm,are available.iOptionallyt can be combined with theDIS100 indicator (IP65).This combination can haveno contact or two opto contacts. Sensing Element Pt100 (w=1.385) Ranges -50°C to 200°C various rangesrefer to the order code Minimum Span Range 50°C
