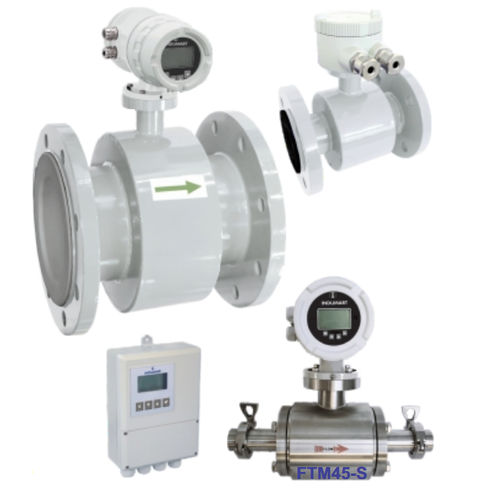

Turbine flow meter FTM45, FTT20 series

magneticvolumefor liquids

UP TO 0.2% ACCURACY 4...20 mA AND/OR PULSE OUTPUT HART COMMUNICATION (OPTION) MODBUS RS-485 INTERFACE (OPTION) INTRODUCTION Indumart FTT20 seriesof Liquid Turbine Flow Transmitters are accurate instruments for measuring flow rate and flow volume of low to medium viscosity liquids in a pipe and produce electrical signals (pulse or current or both) proportional to the flow rate. These flowmeters are offered in various sizes and flow ranges to suit both industrial, municipal and OEM applications. When liquid flows through the turbine housing of the FTT20 flowmeter, it results in spinning of an internal rotor. As the rotor spins, an electrical signal is generated in the coil. This signal is then converted into engineering units (liters, cubic meters, gallons etc.) on the local display. The instrument consists of two parts 1) flow sensor, 2) signal converter. The flow instrument can be supplied as the flow sensor only, without the converter/display, or it can be supplied complete with the converter. The converter with LCD indications for the flow rate and flow volume is used for configuration of the flowmeter parameters such as output scaling, total flow reset, damping, etc. Indumart FTM45 Seriesof Magnetic Flow Transmitters with 4-20 or 0-10 mAand frequency/pulse output signals, proportional to the flow rate of fluids passing through, and lower and upper limit alarm outputs are ideal for very highly accurate measurement of electrically-conductive fluids’flowrate and their total flow Measurement accuracy of the FTM45 Seriesis not subject to variation of the fluid density, viscosity, temperature, pressure and conductivity.
