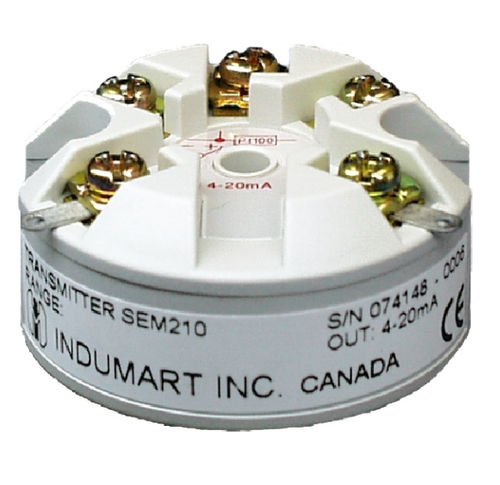

Probe head-mounted temperature transmitter SEM, TTH series

DIN rail mountRTDtype K thermocouple

SIMPLE CONFIGURATION RTD SENSOR INPUT 4-20 mA OUTPUT IN-HEAD MOUNTING DRIFT-FREE LINEARISATION LED OVER-RANGE INDICATION TheSEM203P Temperature Transmitter has incorporated the latest digital technology to provide accurate and reproducible conversion of 2 or 3-wire RTD signals to industry standard 4-20 mAoutput . This, in-head-mounted transmitter, is unique, because it does not need a PC, solder linking or a potentiometer for configuration.By generating the required low and high signals with a calibrator or an RTD simulator and push of the button on the transmitter, configuration is complete. High accuracy and drift-free linearisation coupled with flexibility of reduced stock holding and quick push button calibration make the SEM203Pthe ideal choice for converting RTD outputs to 4-20 mAsignals. An on-board LED indicates the successful completion of configuration procedure and also provides instant indication of the sensor's fault. RTD, THERMOCOUPLE & mV INPUT GALVANIC ISOLATION SENSOR REFERENCING PC PROGRAMMABLE HIGH ACCURACY & STABILITY Sensor Range -200...+850°C Measuring Accuracy ±0.01% f.s. ± 0.05%reading Excitation Current 300 μA to 550 μA Max. Lead Resistance50 S / leg Lead Resist. Effect0.002°C / S THERMOCOUPLE Input Types K, J, T, R, S, E, N, F, L Measuring Accuracy ±0.04% f.s. ± 0.04%reading MILLIVOL Range-10 ...+75 mV Measuring Accuracy±10 μV ± 0.07%reading SLIDE-WIRE input 3-Wire potentiometer Resistance Range10...390 S OUTPUT Output Range 4...20 mA Max. Output 23 mA Accuracy ±5 μA Voltage Effect 0.2 μA / V Supply Voltage 10...35 VDC Max. Output Load 700 S @ 24 V
