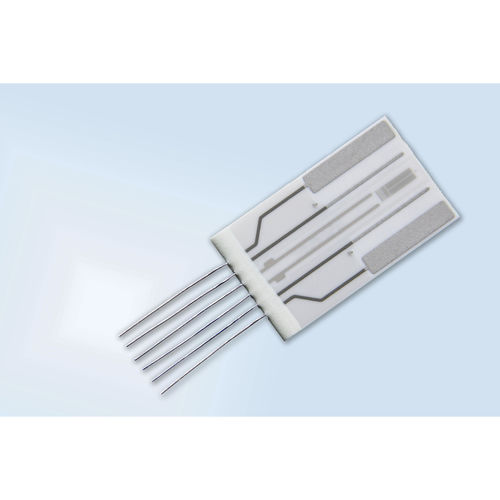

4-electrode conductivity sensor LFS1710
for water

4-electrode conductivity sensor
4-electrode conductivity sensor
4-electrode conductivity sensor
4-electrode conductivity sensor
4-electrode conductivity sensor
Add to favorites
Compare this product


Characteristics

Technology
4-electrode
Applications
for water

Description

The IST AG LFS1710 conductivity sensor offers a typical cell constant of 0.44 cm-1 and a conductivity measuring range from 0.2 mS/cm to 200 mS/cm within an operating temperature range of -30 °C to +100 °C. However, it easily withstands temperatures over 130 °C enabling processes like sterilization by autoclaving. Further advantages of the LFS1710 thin film conductivity sensor include: - Wide conductivity and temperature range - Fast response time - Optimal accuracy - Resistance to various chemicals1) - Excellent long-term stability - Integrated RTD for temperature compensation - Four-electrode measurement2) - Customer-specific sensor available upon request The IST AG LFS1107 conductivity sensor is available with either Pt/Ni-wires or Cu/Ag-wires with PTFE-insulation (AWG 30) as standard wires.
