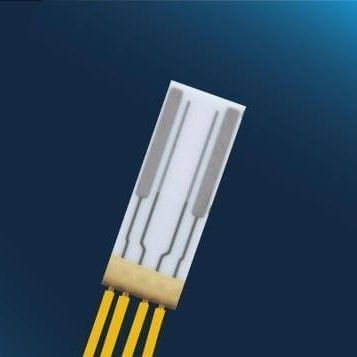

4-electrode conductivity probe LFS1505.2L.20-4

for liquidsfor water4-wire

Overview
Commodity conductivity sensor with four-electrode measurement for various conductivity measurement applications. Measuring range from 100 µS/cm to 100 mS/cm (typical cell constant of 0.66 cm-1). Without an additional temperature sensor, this low-cost version of the LFS1505 is suitable for applications where temperature changes are negligible, such as in some household appliances or monitoring of water quality.

Benefits & Characteristics of the conductivity sensor

• Wide conductivity and temperature range
• Fast response time
• Optimal accuracy
• Resistance to various chemicals
• Excellent long-term stability
• Four-electrode measurement
• Customer-specific sensor available upon request

Product details

• Product Name: LFS1505.2L.20-4
• Product code: 154008
• Conductivity range: 100 µS/cm to 100 mS/cm
• Cell constant: typical 0.66 cm-1
• Layout: 4 electrodes
• Operating temperature range: -30 °C to +100 °C
• Chip size/dimensions: 14.9 x 5.5 x 1.2 mm
• Connection type: 4 wires
• Wires: Cu/Ag stranded wires
• Wire dimensions: AWG28/7, PTFE insulated, 20 mm long

Price (per piece)
Quantity (pieces) | Price (per piece)
5-49 | CHF 10.30
50-99 | CHF 9.27
100-150 | CHF 8.24

Availability & Ordering
200 pieces available in stock. Minimum order step: 5 pieces. Orders selectable in steps of 5 (min. 5, max. 200).

Technical specifications

• Measuring principle: four-electrode conductivity measurement
• Measuring range: 100 µS/cm to 100 mS/cm
• Typical cell constant: 0.66 cm-1
• Operating temperature: -30 °C to +100 °C
• Chip dimensions: 14.9 x 5.5 x 1.2 mm
• Connection: 4 wires (Cu/Ag stranded), AWG28/7, PTFE insulated, 20 mm length
• Suitable for applications with negligible temperature variation (no built-in temperature sensor)
• Product name / variant: LFS1505.2L.20-4
• Product code: 154008
