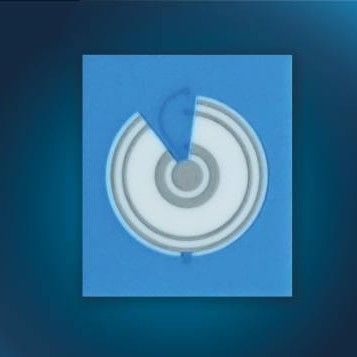

4-electrode conductivity probe LFS.4CO.1614.63A2.CON.P1K0.C

for chemicalsfor waterfor liquids

Overview
Sensor optimized for conductivity measurement in the middle range (2 mS/cm to 20 mS/cm). Typical cell constant: 0.66 cm-1. The double-sided, four-electrode element with integrated temperature sensor is suitable for dialysis fluid monitoring, water quality checks and biological or chemical process control.

Benefits & Characteristics

• Wide conductivity and temperature measurement range
• Fast response time for process control
• High measurement accuracy in the mid-range
• Chemical resistance for diverse process media
• Excellent long-term stability
• Four-electrode measurement principle to minimize polarization effects
• Customer-specific sensor variants available on request

Quality
Manufactured according to Swiss quality standards. IST AG is certified to ISO 9001:2015 (quality) and ISO 14001:2015 (environment). Documented processes are audited and updated regularly to support consistent product quality.

Pricing (per piece)
Quantity 5-49: CHF 25.00 per piece
Quantity 50-99: CHF 23.00 per piece
Quantity 100-150: CHF 22.00 per piece

Specifications / technical data

• Product Name: LFS.4CO.1614.63A2.CON.P1K0.C
• Denomination/Model: LFS 1519
• Conductivity range: 2 mS/cm – 20 mS/cm
• Cell constant: typical 0.66 cm-1

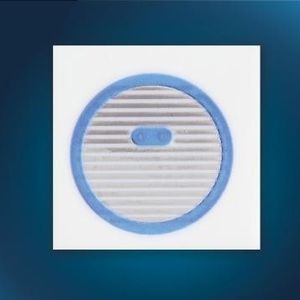

• Layout: 4 concentric electrodes and soldered temperature sensor (Pt1000, class F0.3) on backside
• Operating temperature range: -30 °C to +100 °C
• TCR temperature sensor: Platinum 3850 ppm/K
• Nominal resistance: 1000 Ω at 0 °C
• Tolerance/class: IEC 60751 F0.6 (Class C)
• Chip size/dimensions: 16 mm x 14 mm x 0.63 mm (without temperature sensor soldered on backside)
• Connection type: Connector JST BM06B-SRSS-TB on backside
• Product code: 158615
