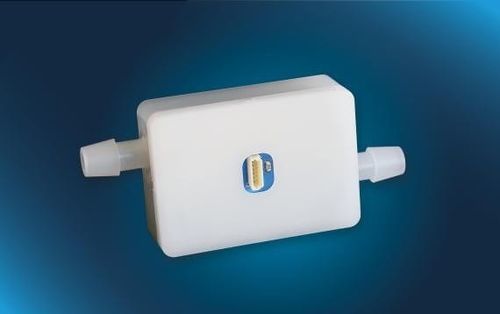

Process flow cell LFS.FC503517.A4x15.oval.V1

for liquidsin-line

Product description
Compact, easy-to-integrate flow cell for in-line conductivity measurement of liquid media intended for evaluation, testing and process monitoring. Designed for rapid evaluation and seamless system integration, the flow cell houses conductivity sensor 158615 for quick installation and effortless sensor replacement. A rear-side JST connector allows direct connection to digital readout electronics, making the unit suitable for application development and process tests.

Key benefits

• Compact design for easy integration
• Reliable in-line conductivity measurement
• Quick sensor installation and replacement
• Simple connection to digital readout interfaces

Benefits & characteristics of the conductivity flow cell

• Compact design for easy system integration
• Reliable in-line conductivity measurement of liquid media
• Quick sensor installation and replacement
• Simple connection to digital readout interfaces
• Integrated Pt1000 temperature sensor for temperature compensation
• Suitable for testing, process monitoring, and application development

Quality
Consistent with Swiss quality standards, IST AG is certified to ISO 9001:2015 and ISO 14001:2015. Appropriate processes are part of daily work and are regularly audited and updated.

Price (per piece)
Quantity (pieces): 1-5 — Price (per piece): CHF 150.00

Specifications / Technical data

• Product name: LFS.FC503517.A4x15.oval.V1
• Product code: 159662
• Conductivity range: 2 mS/cm - 20 mS/cm

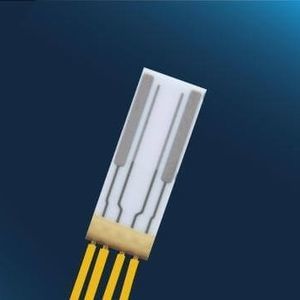

• Layout: 4 concentric electrodes and soldered temperature sensor (Pt1000, class F0.3) on backside
• Operating temperature range: -30 °C to +100 °C
• TCR of temperature sensor: Platinum 3850 ppm/K
• Nominal resistance: 1000 Ω at 0 °C
• Tolerance/class: IEC 60751 F0.3 (Class B)
• Connection type: JST BM06B-SRSS-TB connector on backside
