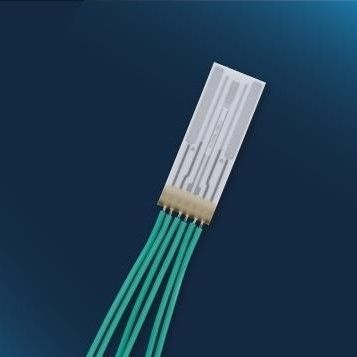

4-electrode conductivity probe LFS1K0.1505.2I.C.070-6

for the food industryfor wastewaterbeverage

Product overview
Sensor for higher conductivity ranges with medium cell constant and integrated temperature sensor. Optimal for applications with a conductivity measuring range from 100 µS/cm to 200 mS/cm (typical cell constant of 0.68 cm-1). Suitable for applications such as biological and chemical processing, the food and beverage industry and water quality determination.

Benefits & Characteristics

• Wide conductivity and temperature range
• Fast response time
• Optimal accuracy
• Resistance to various chemicals
• Excellent long-term stability
• Four-electrode measurement
• Customer-specific sensor available upon request

Usage
Conductivity sensors play an important role in determining water quality and are able to measure the conductivity of most electrolyte solutions. iST conductivity sensors are an ideal choice for water quality and waste water treatment applications, amongst others.

Note
Aggressive media can influence the long-term stability. Chemical resistance of the sensor in the end application must be tested by the customer.

Price (per piece)
Quantity (pieces) — Price (per piece)
5-49 — CHF 38.11
50-99 — CHF 33.99
100-150 — CHF 32.96

Technical specifications

• Product Name: LFS1K0.1505.2I.C.070-6
• Model: LFS1505
• Conductivity range: 100 µS/cm to 200 mS/cm
• Cell constant: typical 0.68 cm-1
• Layout: 4 electrodes and integrated temperature sensor (Pt1000, class F0.6)
• Operating temperature range: -30 °C to +100 °C
• TCR temperature sensor: Platinum 3850 ppm/K
• Nominal resistance: 1000 Ω at 0 °C
• Tolerance/class: IEC 60751 F0.6 (Class C)
• Chip size / dimensions: 14.9 x 5.5 x 1.2 mm
• Connection type: 6 wires
• Wires: Cu/Ag stranded wires
• Wire dimensions: AWG30, PTFE insulated, 70 mm long
• Product code: 103859
