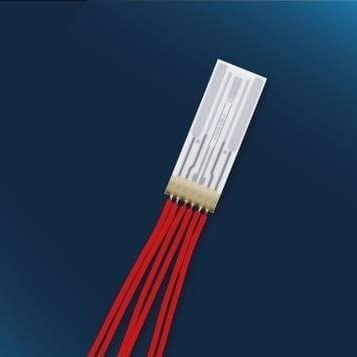

4-electrode conductivity probe LFS1K0.1305.2L.C.060-6

for wastewaterfor waterwith temperature measurement

Overview
Optimal for applications with a conductivity measuring range from 100 µS/cm to 200 mS/cm (typical cell constant of 0.86 cm-1) with integrated Pt1000 temperature sensor.

Short description
Conductivity sensors for water quality and waste water treatment applications.

Benefits & Characteristics

• Wide conductivity and temperature range
• Fast response time
• Optimal accuracy
• Resistance to various chemicals
• Excellent long-term stability
• Four-electrode measurement
• Customer-specific sensor available upon request

Usage
Conductivity sensors play an important role in determining water quality and are able to measure the conductivity of most electrolyte solutions. iST conductivity sensors are an ideal choice for water quality and waste water treatment applications, amongst others.

Note
Aggressive media can influence the long-term stability. Chemical resistance of the sensor in the end application must be tested by the customer.

Quality
Consistent with the well-known, high-quality standards in Switzerland, IST AG is certified according to ISO 9001:2015 (quality) and ISO 14001:2015 (environment). Appropriate processes are part of daily work and are regularly audited.

Pricing
Quantity (pieces) | Price (per piece)
5-49 | CHF 36.05
50-99 | CHF 32.96
100-150 | CHF 30.90

Technical specifications

• Product Name: LFS1K0.1305.2L.C.060-6
• Commercial model: LFS1305
• Conductivity range: 100 µS/cm to 200 mS/cm
• Cell constant: typical 0.86 cm-1
• Layout: 4 electrodes and integrated temperature sensor (Pt1000, class F0.6)
• Operating temperature range: -30 °C to +100 °C
• TCR temperature sensor: Platinum 3850 ppm/K
• Nominal resistance: 1000 Ω at 0°C
• Tolerance/class: IEC 60751 F0.6 (Class C)
• Chip size / dimensions: 12.9 x 5.5 x 1.2 mm
• Connection type: 6 wires
• Wires: Cu/Ag stranded wires
• Wire dimensions: AWG 30/19, PTFE insulated, 60 mm long
• Product code: 158044
• Stock availability (site): 320 pieces available in stock
