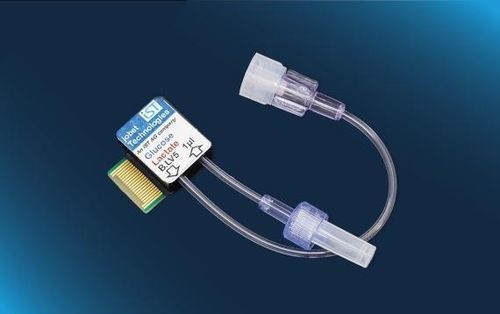

Real-time biosensor B.LV5.GL.C010.ST.L050.ECC.R

lactateglucose

Product Overview
Flow-through biosensor for multiparametric measurement (Glucose and Lactate as standard). Not for medical, diagnostic or human use. For evaluation and research purposes only.

Benefits & Characteristics of the LV5 sensor

• Excellent long-term stability in continuous measurement mode (lifetime depends on analyte concentration and buffer system)
• Extended shelf life under recommended storage conditions
• Compatible with beta and gamma sterilization (see specifications for effects on lifetime)
• Designed for continuous operation and analyzer modes
• Fast response time depending on the buffer medium
• On-chip reference, counter and blank electrodes for reliable measurement
• Integrated flow cell available in various volumes

Disclaimer
Evaluation product intended for professionals and R&D use only. Not for medical diagnostics and not to be used on humans.

Quality
Manufactured in Switzerland under ISO 9001:2015 (quality) and ISO 14001:2015 (environment) certified processes. Quality management and environmental procedures are regularly audited.

Technical specifications

• Product Name: B.LV5.GL.C010.ST.L050.ECC.R
• Commercial model: Biosensor LV5
• Analytes: Glucose, Lactate
• Sensor dimensions: 10.0 x 4.0 x 0.4 mm (height with flow cell: 1.23 mm)
• Construction: Flow-through cell
• Flow range: 0.3 μl/min to 10 ml/min
• Fluidic connection: inner Ø 0.5 mm (0.15 mm available on request)
• Working electrode: Platinum with enzyme membrane
• Blank electrode: Background compensation
• Reference electrode: Silver / silver chloride
• Counter electrode: Platinum
• Glucose measurement range: 0.05 mM to 25 mM (0.01 to 4.5 g/l)
• Lactate measurement range: 0.02 mM to 15 mM (0.002 to 1.5 g/l)
• Sterilization: Beta or gamma sterilization possible (25 kGy typical); sensitivity may increase after irradiation; lactate sensor lifetime may be reduced; initial bioburden <1 cfu per sensor
• Shelf life: >6 months (under recommended storage conditions)
• Operational lifetime: >2 weeks continuous operation; >4 weeks in analyzer mode
• Product code: 105128
