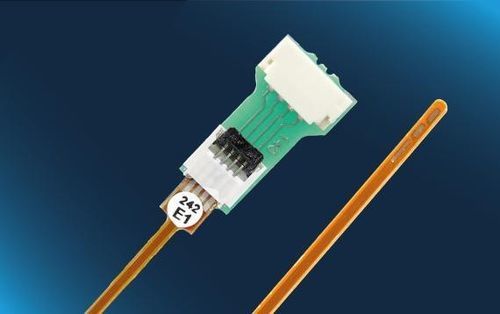

Glucose biosensor B.IV4.G.1X.JST

Overview
Flexible strip-type biosensor designed for dip-in applications. Single-analyte configuration (glucose as standard). Suitable for in-line continuous measurement where reliable, long-term monitoring is required.

Note
Not for medical, diagnostic use or use on humans. For evaluation use only.

Benefits & Characteristics of the IV4 biosensor

• Excellent long-term stability
• Long shelf life
• Gamma and beta sterilization compatible
• Fast response time and outstanding reliability
• Reference, counter and blank electrodes on-chip

Compatible with gamma radiation; suitable for applications such as bioreactors or aseptic media.

Disclaimer
Evaluation product for professionals. To be used solely for research and development purposes. Not for medical or diagnostic use. Not to be used on humans.

Quality
Consistent with Swiss quality management practices, IST AG is certified to ISO 9001:2015 (quality) and ISO 14001:2015 (environment). Relevant processes are established, audited and maintained.

Pricing
Quantity (pieces) | Price (per piece)
1-19 | CHF 234.50
10-49 | CHF 211.10
50-100 | CHF 187.60

Technical characteristics / specifications

• Product Name: B.IV4.G.1X.JST
• Analyte: Glucose
• Sensor dimensions: 58.8/4 x 2.5/0.6 x 0.2 mm (L/L1 x W/W1 x H)
• Construction type: strip-type with 4 electrodes: 1x glucose, 1x blank, 1x reference, 1x counter
• Working electrode: Platinum covered with enzyme membrane
• Blank electrode: For background compensation
• Reference electrode: Silver / silver chloride
• Counter electrode: Platinum
• Glucose measurement range: 0.05 mM to 25 mM / 0.01 to 4.5 g/l
• Sterilization: Beta or gamma sterilization possible (25 kGy typical); sensitivity increases upon radiation; lactate sensors life time is reduced; Initial bioburden < 1 cfu per sensor
• Shelf life: > 6 months (at recommended storage conditions)
• Operational life time: > 4 weeks in analyzer mode
• Product code: 105192
