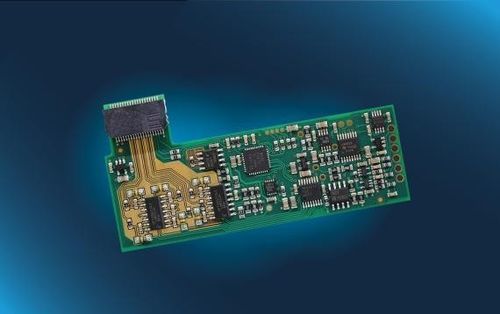

Biosensor SIX.025.045.100.B.C.B

Product overview
Evaluation kit for enzymatic biosensors B.LV5 and B.IV4. Connects directly to a PC via USB or to microprocessors via a standard TTL serial interface. Supplied with Windows-based evaluation software. Intended for use by professionals in research and development environments.

Digital interface

• Bare TTL UART (3.3V)

Connectivity to sensor

• Packaged LV5 biosensor fits directly; LV5 sensor requires reusable holder

Note
Not for medical, diagnostic or human use. This evaluation kit is intended exclusively for professional R&D use.

Technical specifications

• Dimensions: 75 x 38 x 7 mm (L x W x H)
• Compliance: +/- 1 V
• Current (min/max): -25 nA to +25 nA (per channel)
• Current resolution: 0.001 nA (typical RMS noise: 20 pA)
• Working voltage: +0.45 V
• Connector type: Right angle micro edge card socket (MEC6-RA, 40, 0.635 mm)
• Readings per second: 0.6
• Temperature compensation: Built-in on board
• Digital interface: Bare TTL UART (3.3V)
• Connectivity to sensor: Packaged LV5 biosensor fits directly; LV5 requires reusable holder
• Product Name: SIX.025.045.100.B.C.B
• Product code: 105453
