Biosensor SIX.050.045.100.N.C.U

Overview

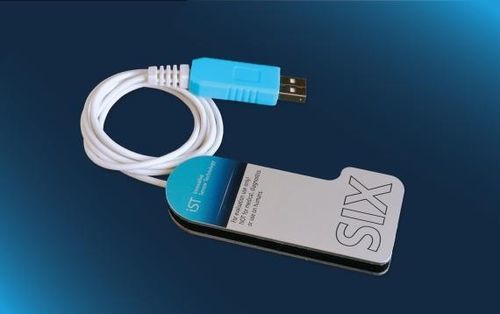

Encased SIX biosensor transmitter for direct evaluation of enzymatic biosensors LV5 and B.IV4.

Interface & Connectivity
Can be directly connected to a computer via USB or to any microprocessor via a standard TTL-serial interface. Comes with Windows-based evaluation software.

• Digital interface: USB 2.0 (Virtual Serial COM)

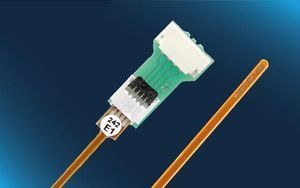

• Connectivity to sensor: Packaged LV5 Biosensor fits directly, no further cable required; LV5 sensor only requires reusable holder (available for purchase online)

Disclaimer
Evaluation product for professionals to be used solely for research and development purposes. Not for medical or diagnostic use. Not to be used on humans.

Quality
Manufactured in Switzerland; IST AG is certified according to ISO 9001:2015 (quality) and ISO 14001:2015 (environment).

Technical specifications

• Digital interface: USB 2.0 (Virtual Serial COM)
• Connectivity to sensor: Packaged LV5 Biosensor fits directly, no further cable required; LV5 sensor only requires reusable holder
• Dimensions: 95 x 42 x 10 mm (L x W x H)
• Compliance: +/- 1 V
• Current (min/max): -50 nA to +50 nA (per channel)
• Current resolution: 0.001 nA (typical RMS noise: 20 pA)
• Working voltage: +0.45 V
• Connector type: Right angle micro edge card socket (MEC6-RA, 40, 0.635 mm)
• Readings per second: 0.7
• Temperature compensation: Built-in on board
• Product Name: SIX.050.045.100.N.C.U
• Product code: 105452
