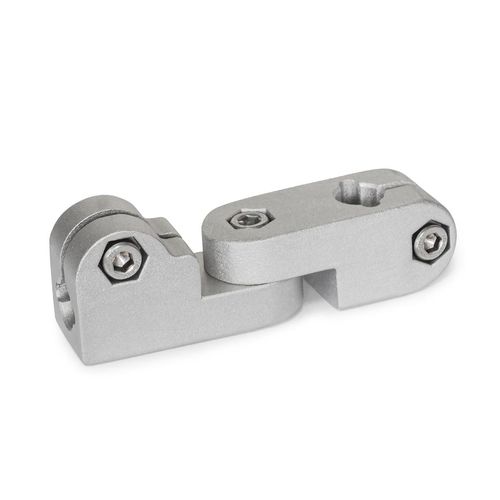

Round tube connector GKP series

crossaluminumadjustable

Joint clamps GKP of die-cast aluminum have slitted clamping points machined by cutting methods. They are comprised of swivel clamps LKT and LKP. The clamping point bores are arranged at an angle of 90° and connected by the clamping joint to swivel by ± 90°. They receive typically available rods and tubes with full surface contact over the entire cross-section of the bore. At the screw points, hex socket cap screws or adjustable hand levers reduce the bore cross-section for clamping. A hex socket cap screw or an adjustable hand lever at the clamping joint serves for locking the joint axis. Clamping levers are intended for repeated, tool-free clamping. Under the designation HSK, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with a clamping lever is lower due to the shorter clamping lever length. On request Clamping points with different diameters d1 and d~2 ~ or special diameter Screw points with hex head screws or mixed screw / adjustable hand lever elements - Surface ball-burnished, anodized or powder-coated in other RAL colors
