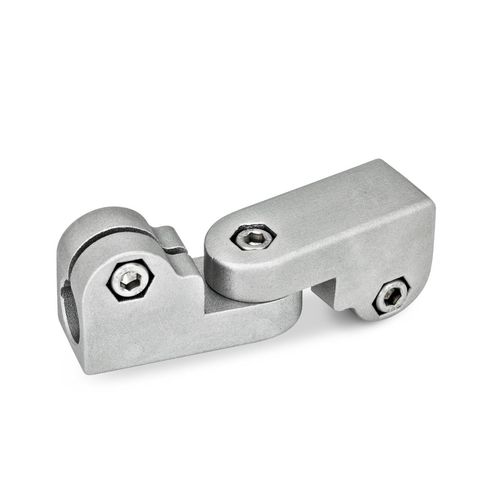

Round tube connector GKT series

aluminumadjustableswivel bearing

Joint clamps GKT of die-cast aluminum have slitted clamping points machined by cutting methods. They are comprised of two swivel clamps LKT. The clamping point bores are situated in a plane and are connected by the clamping joint to swivel by ± 90°, from aligned orientation to perpendicular. They receive typically available rods and tubes with full surface contact over the entire cross-section of the bore. At the screw points, hex socket cap screws or adjustable hand levers reduce the bore cross-section for clamping. A hex socket cap screw or an adjustable hand lever at the clamping joint serves for locking the joint axis. Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HSK, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length. On request Clamping points with different diameters d1 and d2 or special diameter Screw points with hex head screws or mixed screw / hand lever elements Surface ball-burnished, anodized or powder-coated in other RAL colors
