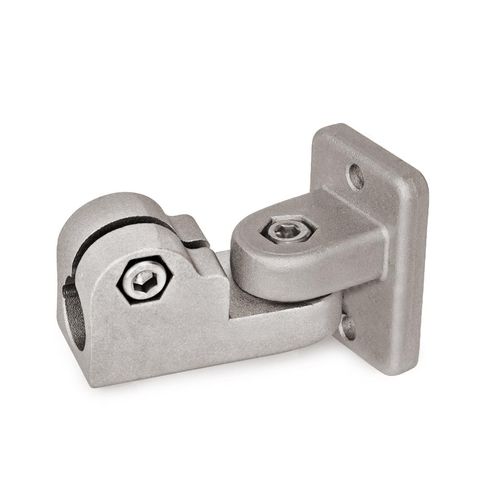

Round tube connector GKF series

stainless steeladjustable

Joint clamps GKF of precision-cast stainless steel have a slitted clamping point machined by cutting methods. They are comprised of swivel clamps LKF and LKT. The clamping point bore is centered in the plane and can be rotated by ± 90° perpendicular to the flange face. It receives typically available rods and tubes with full surface contact over the entire cross-section of the bore. At the screw point, a hex socket cap screw or an adjustable hand lever reduces the bore cross-section for clamping. A hex socket cap screw or an adjustable hand lever at the clamping joint serves for locking the joint axis. The flange with two bores serves as an interface or for fastening the clamp to the place of use. Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HEK, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length. On request Clamping points with special diameter Screw points with hex head screws or mixed screw / hand lever elements Surface ball-burnished, anodized or powder-coated in other RAL colors
