Round tube connector LG

squarealuminumadjustable

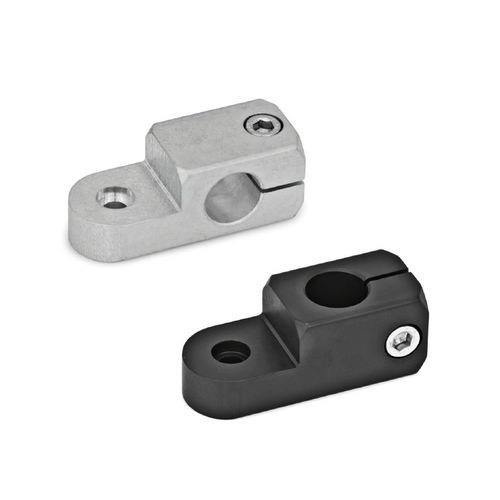

Swivel clamp mountings are made of drawn aluminum profiles and have a slitted clamping point and a smooth clamping lug, both machined by cutting methods. The lug is arranged perpendicular or parallel to the bore of the clamping point, which receives rods and tubes with round cross-sections or also square cross-sections via the optionally incorporated square bore. For clamping, a socket cap screw DIN 912-A2-70 combines with the clamping thread to reduce the bore cross-section. For regular tool-free clamping, adjustable hand lever sets are available as accessories under the designation HK. Swivel clamp mountings LG can be combined with other swivel clamp mountings with identical k dimensions to create any kind of joint clamp mounting. Clamping kits HM are available, type S with a screw and type K with an adjustable hand lever. The relevant dimensions for ordering the clamping kits are found in the dimensions table. RoHS-compliant product
