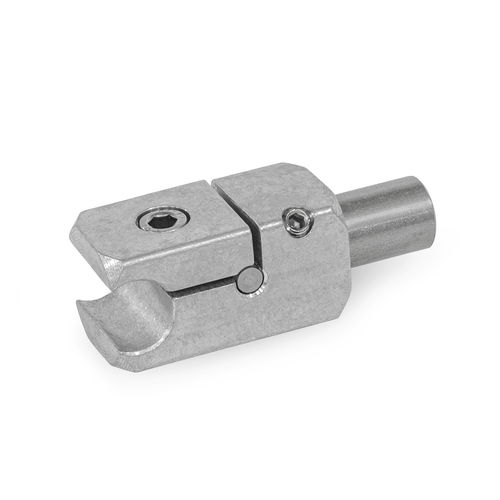

Stainless steel hose clamp TGR

aluminiumscrew

Rail T-clamp mountings TGR are made of drawn aluminum profiles and have a slitted clamping point machined by cutting methods. The clamping point bore is T-shaped relative to the bolt and to the bore on the opposite side. They are used for applications such as side guides, where the clamp mountings must not protrude to the side. In addition, the split clamping point permits subsequent insertion of the clamp mounting into an existing structure and simplifies installation when axial insertion is not possible, such as due to curves. For clamping, a stainless steel socket cap screw DIN 912-A2-70 combined with the clamping thread reduces the cross-section of the clamping point bore. For regular tool-free clamping, adjustable hand lever sets are available asaccessories under the designation HK.
