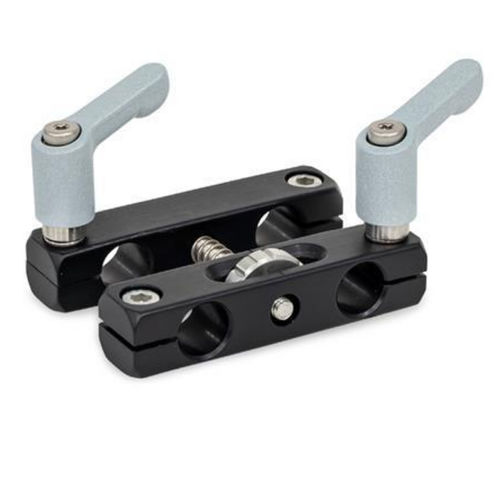

Articulated tube connector VGP

aluminumstainless steeladjustable

Adjustable parallel clamp mountings VGP are made of drawn aluminum profiles and have a slitted clamping point machined by cutting methods. Adjustable parallel clamp mountings are used for fine adjustments of measuring or test setups. For coarse adjustments in millimeters, two adjacent clamping points are released so that the rod can be shifted quickly. When using retaining rods /retaining tubes Retaining rods / retaining tubes RK in type LS with longitudinal scale, their scale provides orientation during presetting. For fine adjustments, two diagonally opposite clamping points are released. The relative position of the retaining rods/retaining tubes can then be set with the adjusting wheel. The adjusting distance can be read in 0.1 mm increments based on the knurled graduations. Due to the integrated spring, the adjustment is free of backlash.
