Rotary carousel Carrousel pour cosse

manual

Overview

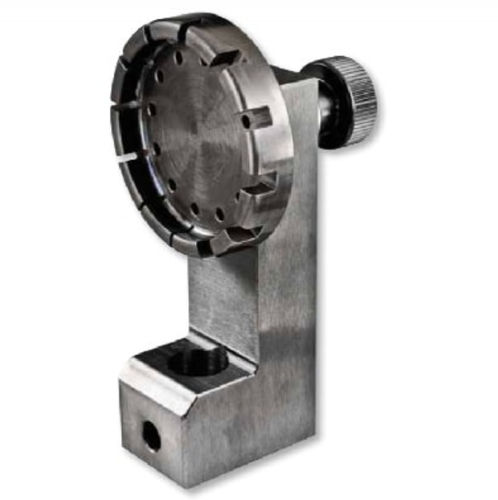

Carousel for terminals designed for pull-out tensile testing of crimped connectors on electrical wire. Easy to use and secures the sample throughout the testing process.

Main functions
Capacity: up to 5 kN (other capacities available on request). Rapid testing of crimps on electrical wires. The carousel mechanism allows rotation for quick change from one wire diameter to another.

Compatible wire diameters

• 0.8 mm
• 1.0 mm
• 1.2 mm
• 1.6 mm
• 2.0 mm
• 2.4 mm
• 3.0 mm
• 3.2 mm
• 4.0 mm
• 4.8 mm
• 5.0 mm
• 6.4 mm

Accessories and options
Models compatible with larger diameters and eye terminals are also available. A second clamp or jaw is required to hold the opposite end of the wire. Common options: manual jaws, self-tightening jaws, gripping systems for wires and cables.

Applications
Pull-out/tensile testing of crimped connectors on electrical wire, quality control and validation of crimps.

Technical specifications

• Rated capacity: up to 5 kN (others on request)
• Test type: pull-out tensile test for crimped terminals
• Compatible wire diameters: 0.8; 1; 1.2; 1.6; 2; 2.4; 3; 3.2; 4; 4.8; 5; 6.4 mm
• Mechanism: rotary carousel for quick diameter change
• Fixing: requires a second clamp/jaw (manual or self-tightening jaws, gripping systems for wires/cables)
• Safety: secures the sample throughout the test
• Operation: simple, fast testing
