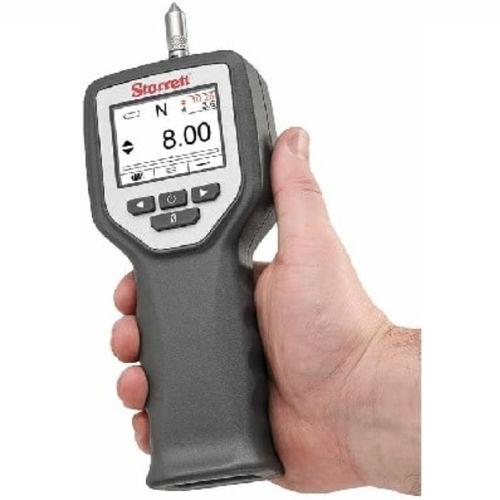

Digital dynamometer DFC

portabletension/compressionwith data logger

Summary
Capacity: 0 to 10 N…0 to 2500 N
Resolution: 10,000 : 1
Measurement accuracy: ±0.1% of full scale
Breaking limit: 200% of full scale
Thread: M6 x 1-6g and M10 x 1.5-6g

Description
DFC compression and tension force gauge. The DFC can be used as a high-precision portable force gauge or as a digital controller to be used with FMM digital force testers. The DFC can act as a universal interface where you configure tests and set load limits, displacement limits, breaking limits, crosshead travel direction, crosshead speed, and other parameters. The DFC provides a measurement accuracy of 0.1% of full scale with internal data sampling at 25 kHz. Display resolution is 10,000:1. The DFC features Bluetooth®, USB and RS-232 communications as well as digital I/O.

Key features

• Exclusive "Machine Control" technology
• Measurement accuracy better than 0.1% of full scale
• Eight available capacities: 10, 25, 50, 100, 250, 500, 1000 and 2500 N
• Selectable units: lbf, N, kgf, ozf and gf
• Tension and compression operation modes
• Result recording in internal memory for statistical calculations or export to PC
• Measurement and storage of peak loads
• Use of tolerances for pass/fail analysis
• Communications: Bluetooth, USB, RS-232
• Integrated digital I/O
• Internal sampling rate: 25,000 Hz

Compatibility and options
Compatible with FMM test stands (optional). Optionally available with COFRAC calibration certificate, COFRAC-equivalent certificate or COFRAC-traceable calibration.

Characteristics / technical specifications

• Capacity ranges: 0–10 N to 0–2500 N (models: 10, 25, 50, 100, 250, 500, 1000, 2500 N)
• Display resolution: 10,000 : 1
• Internal resolution / ratio: 10,000 : 1 (display)
• Accuracy: ±0.1% of full scale
• Breaking limit: 200% of full scale
• Internal sampling: 25,000 Hz (25 kHz)
• Units: N, lbf, kgf, ozf, gf (selectable)
• Measurement modes: tension and compression
• Storage: internal memory for recordings and statistical calculations
• Communication interfaces: Bluetooth®, USB, RS-232
• I/O: Digital inputs/outputs for control and integration
• Mounting thread: M6 x 1-6g and M10 x 1.5-6g
• Use: portable or as digital controller for test benches
