Tension grip AC 22openingtest
Add to favorites
Compare this product
Characteristics
- Options
- tension, opening, test
Description
Overview

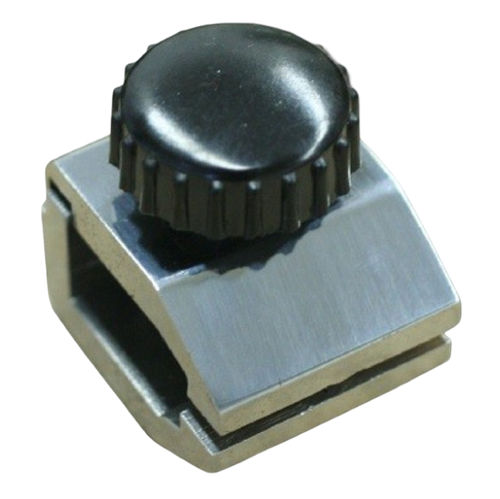

Tensile testing grip AC 22
Main features
Description
Pair of grips designed for tensile testing up to 500 N. Supplied as a pair (weight indicated per pair). Compact design for mounting on test benches and dynamometers, suitable for routine material and component tensile tests.
Technical specifications
Tensile testing grip AC 22
Main features
- Manual opening
- Jaw width: 22 mm
- Maximum opening: 4 mm
- Grip capacity: 500 N
- Weight: 220 g per pair (2 pieces)
- Overall dimensions: 60 x 38 x 31 mm
- Coupling: M6 thread
Description
Pair of grips designed for tensile testing up to 500 N. Supplied as a pair (weight indicated per pair). Compact design for mounting on test benches and dynamometers, suitable for routine material and component tensile tests.
Technical specifications
- Model: AC 22
- Opening type: manual
- Jaw width: 22 mm
- Maximum opening: 4 mm
- Maximum gripping force: 500 N
- Weight: 220 g (per pair, 2 grips)
- Dimensions: 60 x 38 x 31 mm (overall)
- Coupling: M6 thread
