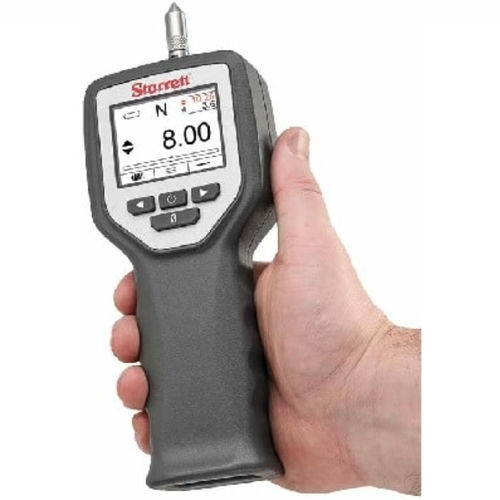

Digital dynamometer DFG

tension/compressionwith data loggerhigh-precision

Summary
The DFG is a compact digital tension and compression force gauge designed for precise traction and compression testing. It features high accuracy and internal memory for storing measurement points.

Main features

• Measurement of tension and compression forces
• Accuracy better than ±0.2% of full scale
• Real-time display of measurement direction and value
• End-of-test results display including pass/fail indication based on tolerances
• Internal storage up to 50 measurement points
• Export of results to PC for analysis
• Communication interfaces: USB and RS232
• Data sampling rate: 10000 Hz

Displays and modes

• Display units: N, lbf, kgf, ozf and gf
• Tension (pull) and compression measurement
• Fast peak load measurement
• Use of tolerances for pass/fail analysis

Capacities and variants
Six capacities available: 50 N, 100 N, 250 N, 500 N, 1000 N and 2500 N

Options

• Optional compatibility with MTL, MTH and FMM test benches
• Calibration certificate available: COFRAC certificate, COFRAC-equivalent or COFRAC-traceable (option)

Specifications / technical data

• Capacity: 0 to 50 N … 0 to 2500 N (six models: 50, 100, 250, 500, 1000, 2500 N)
• Resolution: 5000:1
• Measurement accuracy: ±0.2% of full scale (FS)
• Breaking limit: 200% of full scale
• Thread: M6x1-6g
• Display units: N, lbf, kgf, ozf, gf
• Internal memory: stores up to 50 measurement points
• Output/communication: USB and RS232
• Sampling rate: 10000 Hz
• Built-in statistical functions
• Option: COFRAC or equivalent calibration certificate
