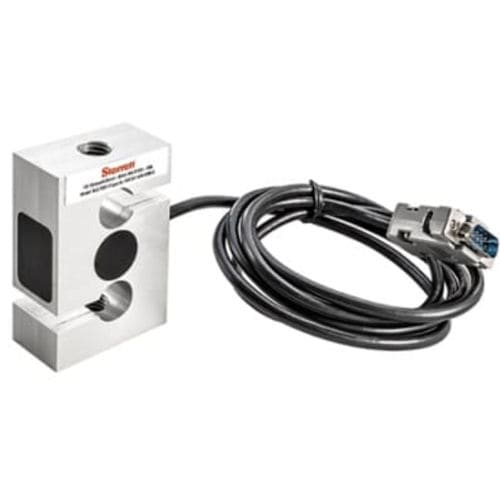

Tension/compression load cell BLC

S-beamsingle-axisstrain gauge

Description
BLC force sensor for L1 test benches. The BLC series force sensors are designed exclusively for use with L1 force test benches. Full-bridge S-beam design for reliable and repeatable measurements.

Main features

• Load cell type: S-beam load cell
• Compatibility: designed for use with L1 test benches
• TEDS identification: IEEE 1451.4 compliant (automatic sensor recognition by the L1 system)
• Supplied with quick-change clevis adapter and metric threads

Usage and monitoring details
When connected to the L1 test bench, the L1 system automatically recognizes the sensor characteristics (model number and serial number). The L1 software can program protections to help avoid accidental overloads and continuously monitors the load cell to display overload history.

Calibration and certificate
Supplied with an NIST calibration certificate (COFRAC equivalent).

Characteristics / technical specifications

• Load capacity: 0 to 10 N … 0 to 2500 N (different models available)
• Resolution: 10,000:1
• Measurement accuracy: ±0.1% of full scale
• Temperature compensation
• Overload protection: safe protection up to 200% (software/system); mechanical protection up to 150% of rated capacity
• TEDS: identification according to IEEE 1451.4
• Supplied with NIST calibration certificate (COFRAC equivalent)
• Metric threads
• Quick-change clevis adapter (ideal for high-volume testing and frequent fixture changes)
• Automatic recognition of model and serial number by the L1 system
• Continuous monitoring and overload history via L1 software
