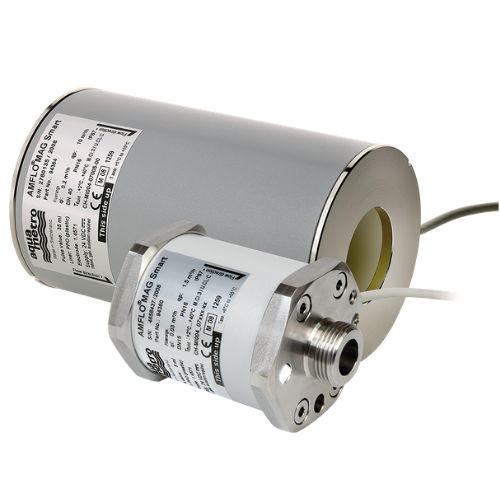

Magnetic flow meter AMFLO MAG Smart
for waterDN25 - 1"DN15 - 1/2"

magnetic flow meter
magnetic flow meter
magnetic flow meter
Add to favorites
Compare this product


Characteristics

Technology
magnetic
Fluid
for water
Pipe diameter
DN25 - 1", DN15 - 1/2", DN80 - 3", DN50 - 2", DN100 - 4", DN20 - 3/4", DN40 - 1"1/2, DN32 - 1"1/4, DN65 - 2"1/2, DN60 - 2"1/4, DN90 - 3"1/2
Installation
insertion, threaded
Protection level
IP67
Applications
industrial
Other characteristics
compact
Volumetric flow rate

Min.: 0 m³/h
(0 ft³/h)

Max.: 140 m³/h
(4,944.1 ft³/h)

Process temperature

Min.: 0 °C
(32 °F)

Max.: 60 °C
(140 °F)

Process pressure

16 bar
(232.06 psi)

Precision

0.5 %

Description

Compact magnetic flowmeter in industrial and commercial buildings Products Application Flowmeters Products Medium Thermal energy Products Process Measure and transmit • Cold water meter for measuring small to large flow rates with one measuring device • Integrated flow straightener (bidirectional measuring principle) • Cost-effective and fast retrofitting of system modules for data readout • Cost-effective and fast exchange of measuring inserts • No inlet and outlet sections required • Suitable for pipe network monitoring and leakage detection • Smart water measuring • Nominal diameter DN15 – DN100 • With threaded connection DN 15 – DN 25; wafer type DN 32 – DN 100 • Suitable for water or water/glycol mixture • Measuring tube made of PPE Noryl • Protection class IP67 • Measuring range 0.015m/s – 5m/s • Minimum conductivity of the medium 40µPa/cm • Accuracy +/- 0,5% v M (+/- 0,004 m/s below 0,5 m/s) • Power supply via calculator possible • Approval according to MI004 and PTB Cooling K 7.2 • MID Conform
