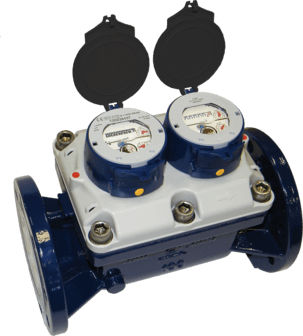

Analog water meter RUBIN KTW / KTW+

mechanical

Mechanical compound water meter for cold water Products Application Network Products Medium Water Products Process Measure and transmit • Cold water meter • High measuring dynamics • Integrated flow straightener • Cost-effective and fast retrofitting of system modules • Fast exchange of measuring inserts • Measurement of high and strongly fluctuating flow rates • No inlet and outlet sections required • With leak detection • Smart water measuring • For horizontal and vertical installation up to DN 100 • For horizontal installation with DN 150 • Nominal pressure PN 16 bar • Temperature range: 0°C to 50°C • Protection class IP 68 • Measuring range up to R6300, depending on nominal size • Accuracy class 2 / T30 • Drinking water approval • MID Conform (2004/22/EC), Attachement MI001 • Main meter and bypass meter in series up to DN 100 • Main meter and bypass meter side by side for DN 150 • No differentiation of the design between bypass meter left or right up to DN 100
