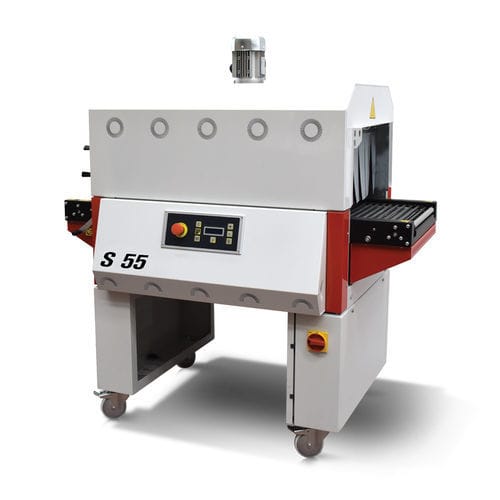

Electric shrink tunnel S 55

hot air

Overview
The S 55 hot-air single-chamber shrink tunnel is engineered for fast, reliable shrink-packaging of small products. Compatible with PVC, polyolefin and polyethylene films and designed with technical and ergonomic upgrades for repeatable aesthetic results. Maximum product entry height: 230 mm. Conveyor speed range: 2 to 14.5 m/min.

5 Great Reasons to Choose This Product

• Dedicated technical support for purchase and start-up
• Excellent value for money
• 12-month warranty on spare parts
• Quick-storage / ready-to-store configuration
• Manufacturer with more than 35 years on the market

Optional

• Variable-speed fan
• Output roller conveyor with idle rollers, pitch 46 mm, length 1000 mm
• Protected output roller conveyor with idle rollers, pitch 46 mm, length 1000 mm
• AISI 304 stainless steel structure

Features

• Single-chamber hot-air shrink tunnel
• Control system: FLXMOD®
• Alphanumeric LCD panel driven by a 16-bit microprocessor board
• Tunnel conveyor belt with rotating or fixed silicone-coated rollers
• Modular power section with inverters and contactors
• Airflow regulation via deflectors
• Optimised energy consumption
• CE compliance

Operations control

• Adjustable belt speed and shrink temperature
• Storage for up to 10 different work cycles
• Tunnel cooling system
• Airflow management by adjustable deflectors

Technical specifications

• Machine size: L 1370 x W 835 x H 1440 mm
• Net weight: 187 kg
• Supply voltage: 380 V, 3-phase
• Power frequency: 50 / 60 Hz
• Installed power: 8 kW
• Maximum product height: 230 mm
• Suitable films: PVC, polyolefins, polyethylene
• Film thickness: up to 50 µm
• Conveyor speed: 2–14.5 m/min
• Storage: up to 10 work cycles
