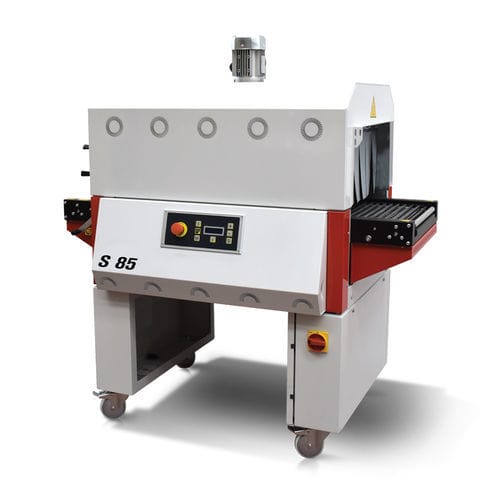

Electric shrink tunnel S85

compacthot air

Product overview
The S85 is a single-chamber heat shrink tunnel engineered for rapid packaging of small products. Maximum product height: 300 mm. Conveyor speed: 1.5–9 m/min. Compatible with PVC, polyolefins and polyethylene shrink films. Equipped with the FLXMOD® control system featuring an alphanumeric LCD and a 16-bit microprocessor. Modular power section separate from the control panel, with inverter and contactors, enables precise control of belt speed, shrink temperature and other functions. Compact footprint and energy-saving airflow regulation ensure efficient operation. CE compliant.

Why choose S85

• Technical support during purchase
• 12-month warranty on spare parts
• Compact layout for small-product lines
• Adjustable speed for flexible throughput
• Proven solution with 35+ years on the market

Key features

• Single-chamber heat shrink tunnel
• FLXMOD® control system
• Alphanumeric LCD panel with 16-bit microprocessor board
• Tunnel conveyor with rotating or fixed silicone-coated rollers
• Modular power section with inverter and contactors
• Airflow regulation deflectors
• Reduced energy consumption
• CE regulatory compliance

Options

• Variable-speed fan
• Output roller conveyor with idle rollers, pitch 46 mm, length 1000 mm
• Protected output roller conveyor with idle rollers, pitch 46 mm, length 1000 mm

Operations control

• Adjustable belt speed and shrink temperature
• Storage of up to 10 different work cycles
• Tunnel cooling system
• Airflow management via deflectors

Technical data
Machine size: L 1380 x W 1045 x H 1565 mm
Net weight: 241 kg
Supply voltage: 380 V 3 ph
Power frequency: 50/60 Hz
Installed power: 9.5 kW
Maximum product height: 300 mm
Usable films: PVC, Polyolefins, Polyethylene
Film thickness: up to 50 µm

Technical specifications

• Modular power section separated from control panel (inverter and contactors)
• FLXMOD® control system
• Alphanumeric LCD control panel
• 16-bit microprocessor board
• Tunnel conveyor with silicone-coated rollers (rotating or fixed)
• Airflow regulation deflectors
• Memory for up to 10 work cycles
• Optional variable-speed fan and output roller conveyors
• CE compliant
