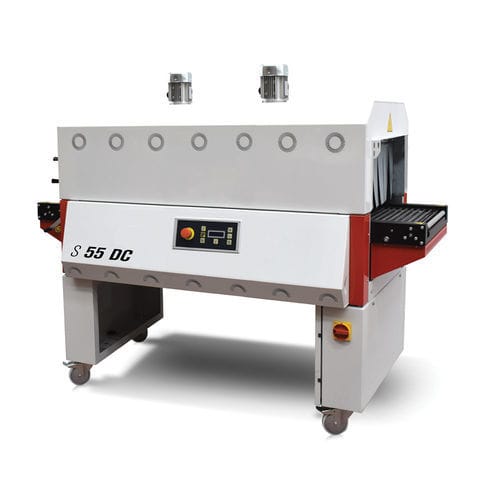

Electric shrink tunnel S55 DC

hot airdouble-chamber

Overview
The S55 DC is a double‑chamber heat shrink tunnel designed for fast, flexible packaging of small products. Maximum product entry (height): 230 mm. Conveyor speed range: 3 to 19.5 m/min. Compatible with PVC, polyolefins and polyethylene films; film thickness up to 80 µm.

Control system and structure
Equipped with the FLXMOD® control system and an alphanumeric LCD panel driven by a 16‑bit microprocessor board. The machine features a modular power section separate from the control panel, with inverters and contactors for precise control of belt speed and shrink temperature.

5 reasons to choose this product

• Technical support for purchase and commissioning
• Competitive value for money
• 12‑month warranty on spare parts
• Short lead times / rapid availability
• Manufacturer with over 35 years' market presence

Optional

• Variable‑speed fan
• Output roller conveyor with idle rollers, pitch 46 mm, length 1000 mm
• Protected output roller conveyor with idle rollers, pitch 46 mm, length 1000 mm
• Product handling group

Features

• Double‑chamber heat shrink tunnel (S55 DC)
• FLXMOD® control system
• Alphanumeric LCD control panel with 16‑bit microprocessor
• Tunnel conveyor with rotating or fixed silicone‑coated rollers
• Modular power section with inverters and contactors
• Airflow regulation via deflectors
• Energy‑efficient design
• CE conformity

Operations control

• Adjustment of belt speed and shrink temperature
• Storage of up to 10 different work cycles
• Tunnel cooling system
• Airflow management using deflectors

Product information
Machine size: L 1900 x W 835 x H 1440 mm
Net weight: 300 kg
Supply voltage: 380 V three‑phase
Power frequency: 50 / 60 Hz
Installed power: 12.7 kW
Maximum product height: 230 mm
Usable films: PVC, polyolefins, polyethylene
Film thickness: up to 80 µm
Conveyor speed: 3 to 19.5 m/min

Technical specifications

• Model: S55 DC (double‑chamber heat shrink tunnel)
• Maximum product entry / height: 230 mm
• Conveyor speed range: 3 to 19.5 m/min
• Machine dimensions (L x W x H): 1900 x 835 x 1440 mm
• Net weight: 300 kg
• Supply: 380 V three‑phase, 50/60 Hz
• Installed power: 12.7 kW
• Compatible films: PVC, polyolefins, polyethylene (up to 80 µm)
• Control system: FLXMOD® with alphanumeric LCD and 16‑bit microprocessor
• Modular power section with inverters and contactors
