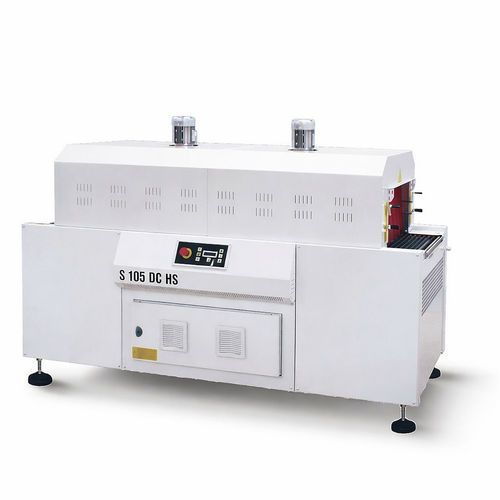

Electric shrink tunnel S105 DC HS

double-chamber

Overview
The S105 DC HS is a double-chamber shrink tunnel designed for rapid packaging of small products. Maximum product inlet height: 350 mm. Conveyor speed range: 2.5–16 m/min. Compatible with PVC, polyolefin and polyethylene heat-shrink films (up to 80 µm). Equipped with the FLXMOD® control system with an alphanumeric LCD panel and a 16-bit microprocessor. Modular power section separated from the control panel, with inverters and contactors for precise management of belt speed and shrink temperature. CE compliant and optimised for reduced energy consumption.

5 REASONS TO CHOOSE THIS PRODUCT

• Technical purchasing support
• Competitive price-performance ratio
• 12-month warranty on spare parts
• Fast packaging throughput for small products
• Manufacturer with over 35 years of market presence

Key features

• Double-chamber heat shrink tunnel
• FLXMOD® control system with:
  • Alphanumeric LCD control panel and electronic board
  • Modular power section separate from the control panel
  • Inverters and contactors for precise power management
  • Inverter for oven belt speed control and static relays for resistor modules
• System capabilities:
  • Belt speed regulation
  • Shrink temperature regulation
  • Storage of up to 10 preset work cycles
• Tunnel conveyor with rotating or fixed silicone-coated rollers
• Tunnel cooling system and airflow regulation deflectors
• Reduced energy consumption
• CE regulatory compliance

Optional

• Variable-speed fan
• Output roller conveyor with idle rollers, pitch 46 mm, length 1000 mm
• Protected output roller conveyor with idle rollers, pitch 46 mm, length 1000 mm
• Kit for products H = 350 mm

Operations control

• Adjusting belt speed
• Adjusting shrink temperature
• Storing up to 10 different work cycles
• Tunnel cooling system control

Product information
Machine size: L 2160 x W 1315 x H 1615–1745 mm
Net weight: 530 Kg
Supply voltage: 380 V, 3-phase
Power frequency: 50 / 60 Hz
Installed power: 24,800 W
Maximum product height: 350 mm
Usable films: PVC, Polyolefins, Polyethylene
Film thickness: Up to 80 µm

Technical specifications

• Model: S105 DC HS (double-chamber heat shrink tunnel)
• Maximum product inlet height: 350 mm
• Conveyor speed range: 2.5–16 m/min
• Machine dimensions (L x W x H): 2160 x 1315 x 1615–1745 mm
• Net weight: 530 Kg
• Supply voltage: 380 V, 3-phase
• Power frequency: 50 / 60 Hz
• Installed power: 24,800 W
• Usable films: PVC, Polyolefins, Polyethylene
• Maximum film thickness: up to 80 µm
• Control system: FLXMOD® with alphanumeric LCD and 16-bit microprocessor
• Features: inverter-driven belt speed control, static relays for resistor modules, tunnel cooling, airflow regulation deflectors, silicone-coated rollers option, CE compliance
