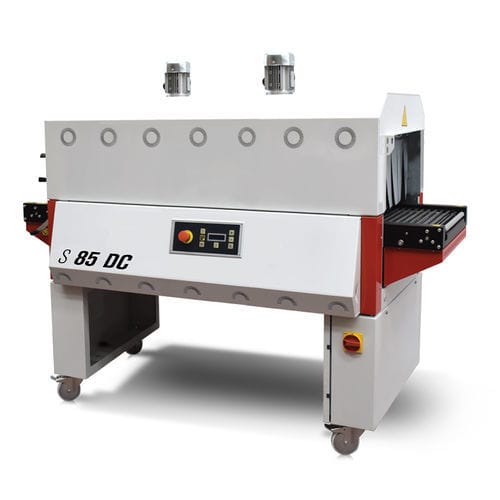

Electric shrink tunnel S85 DC

double-chamber

Short description
The S85 DC is a double-chamber heat shrink tunnel designed for fast, flexible packaging of small products. Maximum product height: 300 mm. Conveyor speed adjustable from 2 to 14.5 m/min. Compatible with PVC, polyolefin and polyethylene shrink films.

Double-chamber shrink tunnel with simple and accurate control system
The S85 DC features technical and ergonomic updates to address varied packaging requirements. It is fitted with the FLXMOD® control system, an alphanumeric LCD panel and a 16-bit microprocessor board. The modular power section is separated from the control panel and includes inverters and contactors, enabling precise control of belt speed and shrink temperature for consistent results.

5 GREAT REASONS TO CHOOSE THIS PRODUCT

• Technical support for purchasing
• Cost-effective solution for small-product shrink packaging
• 12-month warranty on spare parts
• Quick setup and storage of work cycles
• Manufacturer experience on the market for over 35 years

Optional

• Variable-speed fan
• Output roller conveyor with idle rollers, pitch 46 mm, length 1000 mm
• Protected output roller conveyor with idle rollers, pitch 46 mm, length 1000 mm
• Kit for products h = 350 mm

Features

• Double-chamber heat shrink tunnel
• Control system FLXMOD®
• Alphanumeric LCD control panel with 16-bit microprocessor board
• Tunnel conveyor with rotating or fixed silicone-coated rollers
• Modular power section with inverters and contactors
• Airflow regulation deflectors and tunnel cooling system
• Reduced energy consumption
• CE compliance

Operations control

• Adjustment of belt speed and shrink temperature
• Possibility to store up to 10 different work cycles
• Tunnel cooling system
• Airflow management via deflectors

Product information
Machine size: L 1910 x W 1045 x H 1565 mm
Net weight: 380 kg
Supply voltage: 380 V, 3 ph
Power frequency: 50 / 60 Hz
Maximum product height: 300 mm
Installed power: 15.8 kW
Usable films: PVC, polyolefins, polyethylene
Film thickness supported: up to 80 µm

Technical specifications

• Model: S85 DC
• Type: double-chamber heat shrink tunnel
• Maximum product infeed / height: 300 mm
• Conveyor belt speed: 2 to 14.5 m/min
• Machine dimensions (L x W x H): 1910 x 1045 x 1565 mm
• Net weight: 380 kg
• Supply voltage: 380 V, 3 phase
• Power frequency: 50 / 60 Hz
• Installed power: 15.8 kW
• Compatible films: PVC, polyolefins, polyethylene
• Maximum film thickness: up to 80 µm
• Control system: FLXMOD® with alphanumeric LCD and 16-bit microprocessor
• Modular power section with inverters and contactors
• Tunnel conveyor: rotating or fixed silicone-coated rollers
• Airflow regulation deflectors and tunnel cooling system
• Energy-efficient design and CE compliance
