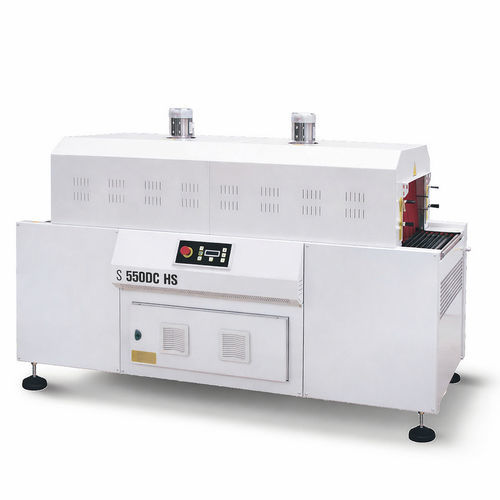

Electric shrink tunnel S55 DC HS

double-chamber

Product overview
The S55 DC HS is a double-chamber heat shrink tunnel engineered for fast, repeatable packaging of small products using shrink films. It accepts products up to 260 mm in height and supports conveyor speeds from 4 to 29 m/min. The machine is compatible with PVC, polyolefins and polyethylene films and is built for flexible integration into packaging lines.

5 great reasons to choose this product

• Technical support available for purchase and commissioning
• Balanced cost of ownership for industrial use
• 12-month warranty on spare parts
• Short lead times for spare parts and accessories
• Manufacturer experience: over 35 years on the market

Optional

• Variable-speed axial fan
• Output roller conveyor with free rollers, pitch 46 mm, length 1000 mm
• Protected output roller conveyor with free rollers, pitch 46 mm, length 1000 mm

Features

• Double-chamber heat shrink tunnel S55 DC HS
• Control system: FLXMOD® with alphanumeric LCD and 16-bit microprocessor
• Modular power section, separate from control panel
• Inverter for oven belt speed control and static relays for resistor module control
• Tunnel belt with rotating or fixed silicone-coated rollers
• Tunnel cooling system and airflow regulation via deflectors
• Energy-efficient design
• CE compliant

Operations control

• Belt speed adjustment
• Shrink temperature regulation
• Storage of up to 10 different work cycles
• Tunnel cooling management
• Airflow balancing using deflectors

Product information
Machine size: L 2160 x W 940 x H 1405 – 1565 mm.
Net weight: 390 kg
Supply voltage: 380 V, 3 ph
Power frequency: 50 / 60 Hz
Installed power: 12.7 kW
Maximum product height: 260 mm
Conveyor speed: 4 - 29 m/min
Usable films: PVC, Polyolefins, Polyethylene
Film thickness: up to 80 µm

Technical specifications

• Model: S55 DC HS
• Type: Double-chamber heat shrink tunnel
• Machine dimensions: L 2160 x W 940 x H 1405 – 1565 mm
• Net weight: 390 kg
• Maximum product height (entry): 260 mm
• Conveyor speed range: 4 - 29 m/min
• Supply voltage: 380 V, 3 ph
• Frequency: 50 / 60 Hz
• Installed power: 12.7 kW
• Compatible films: PVC, polyolefins, polyethylene
• Supported film thickness: up to 80 µm
• Control system: FLXMOD® with alphanumeric LCD and 16-bit microprocessor
• Power section: modular with inverter and static relays
• Belt options: rotating or fixed silicone-coated rollers
• Cooling system and airflow deflectors
