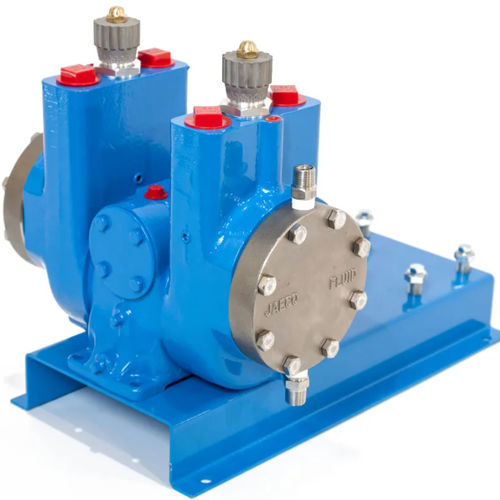

Water pump 511-Duplex series

hydraulically-operatedplungerstationary

JAECO FRAM 511 duplex diaphragm chemical pumps are hydraulically actuated metering pumps designed for accurate, completely leak-proof metering of difficult-to-handle liquids. The Fram 511 Duplex has flow rates from 3.4 GPH to 28 GPH with a maximum pressure of 500 PSI. Separate chambers for hydraulic fluid and gear lubricant make possible the use of the best medium for hydraulic diaphragm pulsing and the best medium for gear lubrication. The results are better pump performance and longer pump life. Diaphragm material = Teflon (PTFE) Plunger diameter = 11/16″ Liquid End = 316 Stainless Steel Motor options: Single Phase 7235 – 1/3 HP, TEFC, 1725 RPM, 1/60Hz, 115-230 Volt Three Phase 7245 – 1/3 HP, TEFC, 1725 RPM 3/60 HZ, 230-460 Volt Flow rate measured in Gallons Per Hour (GPH) Patented, heavy-duty gear reducer system for superior performance. Hydraulically actuated diaphragm minimizes diaphragm fatigue. A built-in hydraulic relief valve protects the pump. Stroke rate easily automated using a variable-speed drive. Capacity is adjustable while the pump is running or idle. Capacity is adjustable for a turn-down ratio of 10:1. Easy-to-read stroke length adjustment dial. Available with or without a motor. Oil bath gear lubrication eliminates the maintenance required by packing grease or auxiliary oil systems. Top-mounted lube oil and hydraulic fluid fill ports for easy access. Single ball check valve, standard on both suction and discharge side of the pump, provides accurate metering and fast response. Valve ball turns with fluid flow, constantly presenting a new face to the seat, and therefore is self-cleaning. Accuracy of ± .5% at steady state.
