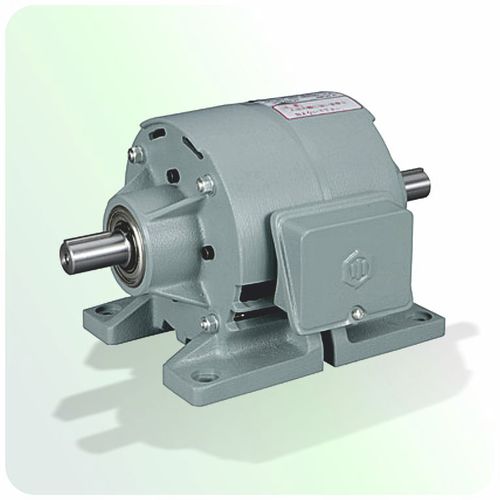

Disc clutch and brake MSU series
electromagneticwith bearings

disc clutch and brake
disc clutch and brake
Add to favorites
Compare this product


Characteristics

Type
disc
Operation
electromagnetic
Other characteristics
with bearings
Torque

Min.: 12 Nm (8.8507 ft.lb)

Max.: 1,000 Nm (737.5621 ft.lb)

Rotational speed

Min.: 1,800 rpm (11,309.73 rad.min-1)

Max.: 5,500 rpm (34,557.52 rad.min-1)

Description

Combination clutch/brake unit designed for general industrial use. Housing contains through hole foot mounts for easy assembly and an easy shaft in and shaft out connection. Both shafts are double bearing mounted to accept heavy side loads. Clutch and brake armatures have automatic wear adjustments to maintain proper air gap settings through life of the unit. Automatic Air Gap Adjustment; Both clutch and brake armatures are equipped with a mechanism that automatically adjusts for wear which maintains stable response time. Easy Mounting; Clutch/brake package comes fully assembled and is easily set in place by installing four bolts in the mounting feet. Protected Against Contamination; Clutch/brake is enclosed in an aluminum housing which prevents contamination of the clutch and brake armature. Housing also provides additional heat dissipation. Good Overhung Load Capability; Both input and output shafts are mounted on two independent single row ball bearings allowing for good side load capability.
