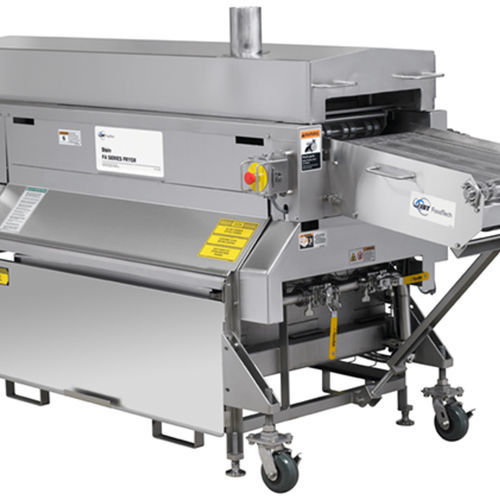

Continuous industrial fryer Stein FA-5

deep-fatconveyorheight-adjustable

Overview
Our Stein FA Series pilot/laboratory conveyorized fryer is an electric, directly heated oil immersion fryer developed for new product development and very small production runs. It reproduces the process characteristics of larger production fryers, making it suitable for pilot tests, formulation trials and small-scale production in commissaries, restaurant chains, schools and other mass-feeding facilities.

Key features

• Five longitudinal electric immersion tubes provide uniform oil temperature end to end and side to side
• Low oil level safety switch prevents heater operation at low oil level
• Adjustable top submerger hold-down conveyor accommodates products of varying heights
• Insulated hood contains cooking oil fumes and improves operator ergonomics
• On-board oil storage tank and circulation pump with manual sediment filter facilitate oil management and emptying for cleaning

Details

• Designed for pre-frying a wide range of coated products to set coatings and to incorporate oil for flavor development; also able to cook coated and uncoated substrates to targeted end-point temperature
• Available with electric drives and push-button controls
• Usable belt width: 14 inches
• Usable frying length: 4 feet

Options

• Tempura conveyor modification with Teflon slat belt infeed
• 24-inch discharge conveyor

Models

• Stein FA-5 Pilot/laboratory Conveyorized Fryer

Service
Comprehensive service offerings support lifecycle needs: preventive maintenance, spare parts, performance optimization and on-site assistance to maximize uptime and control operating costs.

Downloads
FA-5 Fryer Specifications | 0.1MB | PDF

Technical specifications

• Product type: Electric, directly heated oil immersion pilot/laboratory conveyorized fryer
• Heating: Five longitudinal electric immersion tubes for consistent oil temperature distribution
• Controls: Electric drives with push-button controls
• Usable belt width: 14 inches
• Usable frying length: 4 feet
• Safety: Low oil level safety switch
• Conveyor: Adjustable top submerger hold-down conveyor for varying product heights
• Hood: Insulated hood to contain oil fumes and improve operator ergonomics
• Oil management: On-board oil storage tank, circulation pump and manual sediment filter
