Conductive elastomer GUJ22 Series

custom-made

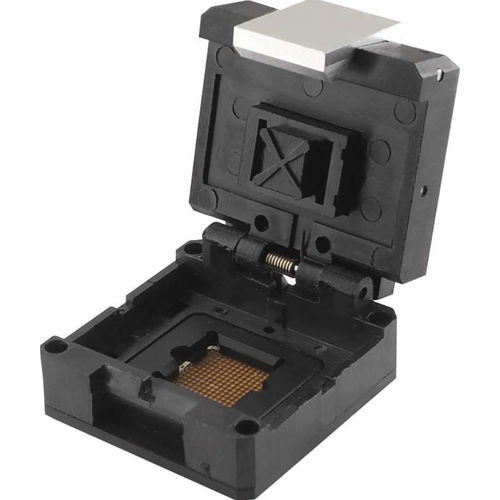

High Frequency RA Elastomer (Conductive sheet)Socket Clamshell Bandwidth pitch Test socket for high frequency measurement using a RA elastomer of flat land contact type(Conductive sheet). Your specific custom designs welcome. We also accept PC board production. Please consult us for details. - For Device Evaluation - Small size - Short Delivery Time - Less ball/pad damage - Elastomer can be easily replaced - Low inductance and good High Frequency Response ＊　　　Since there are contacts on the entire surface, we can accept 　the number of pins below this number and irregular arrangements. Please contact us for more than this notation. ＊＊　　This is a simulation value, not a guaranteed value. 　It will vary depending on the actual usage conditions. ＊＊＊　It will vary depending on the actual usage conditions. ･The pad structure should be Non-Solder Mask Defined. ･Silkscreen should not be in the socket installation area. ･When designing with Via-in-Pad, fill the holes in via and make sure there is no unevenness on the pad surface. ･The pad should be same or heigher than Solder mask. We accept IC device foot pattern and thickness other than on this.
