IC device test socket GD21-HU3PAK-K-TEKBfor transistor outline (TO) packageKelvin
Add to favorites
Compare this product
Characteristics
- Applications
- for IC devices, for transistor outline (TO) package
- Options
- Kelvin
Description

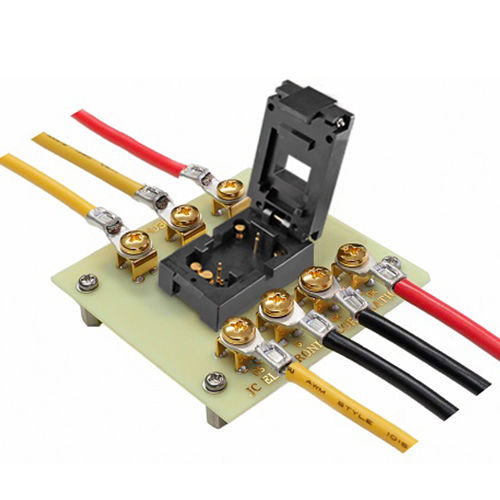

HU3PAK Scokets + Evaluation Test Board Set
Save time by eliminating the need to design and source sockets and PCBs separately—quickly set up your evaluation environment.
- Accelerates development and reduces delays in prototyping
- Supports Kelvin connection for precise measurements
- Custom design and production available upon request
PC Board size : 70mm x 70mm
PC Board thickness : 1.6mm
Current Rating : 12A at 25°C(Between Drain and Source)
Insulation Resistance : 500MΩ min.
Dielectric withstanding voltage : AC2000Vrms 1 minute at 25°C(Between Drain and Source)
Temperature Range : -55 to +175°C
Catalogs
GD21-HU3PAK-K-TEKB
1 Pages
Other JC CHERRY INC. products

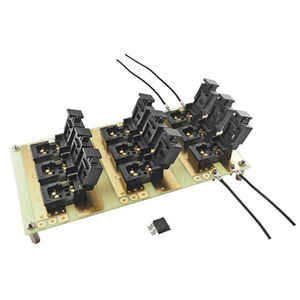

Socket + Burn-In Test Board Set
