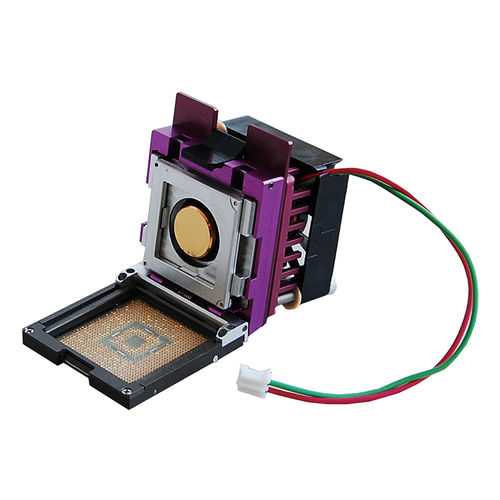

High-frequency test socket

for IC devicesdip solder

High-Frequency Sockets for LSI Implementation Evaluation Ideal for failure analysis, prototyping, and high-speed signal testing on LSI evaluation boards and production PCBs. Supports PAM4, PCIe Gen5, DDR5, USB 3.0, and more Ultra-short probes ensure high-frequency performance Direct mounting to original pads reproduces real signal paths Two types available:  • Screw-mounted:   - Easy setup with minimal board modification   - Up to 1000 pins, compact 14.5mm body   - Fan motor and heat sink options available  • Surface-mount:   - 0.4mm pitch support   - Rotary lever and heat sink included   - Suitable for direct use on production PCBs Supports thermal management, ESD, and emission analysis Custom housing options available for boards without socket holes Ideal for device replacement, software development, and evaluation
