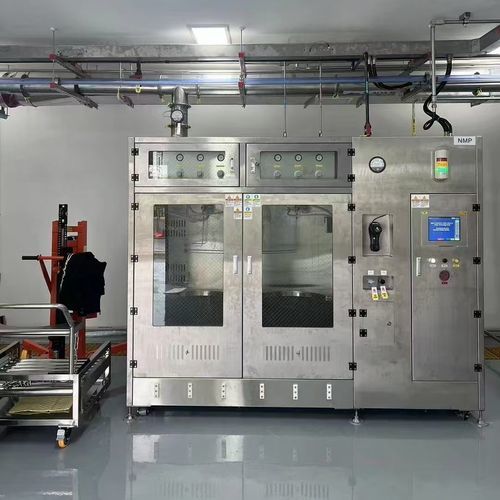

Dosing station

Overview
The 316L electropolished Chemical Delivery System (CDS) is designed for contamination-free liquid handling in EV battery manufacturing. Electropolished 316L internal piping with a 5Ra finish minimizes particle entrapment and ion leaching. The system integrates PLC-controlled automation, HMI, nitrogen blanketing for volatile organics, secondary containment with automatic leak detection, and monitoring to maintain the zero-contamination environment required for electrolyte filling and chemical dosing.

Technical Data

• Model: JW-200L-CDM, JW-1000L-CDM
• Special gas cabinet size: W2200 × D1500 × H2000 (double drums); W2990 × D2100 × H2000 (double drums)
• Control cabinet power supply: 220 VAC, 50 Hz, 0.5–3 kW, with leakage protection
• Purge: PN2, SS316 1/2" SWG
• Ultra-pure water: UPW, JIS 16A bonding
• Compressed air: CDA, SS316 1/2" SWG
• Waste outlet: Drain, PP DN20 fusion socket / Drain, PP DN25 fusion socket
• Standard equipment: PP shell with transparent PVC observation window, PFA internal piping and valves, nitrogen purging, sampling, fully automatic acid supply, automatic left/right drum switching, dual-use pump with backup, level-based automatic switching, touchscreen status display, automatic cut-off, warnings and alarms, self-checks, multi-language HMI, multiple signal inputs, code scanner, optional high-efficiency filter and door sensor

Speciality Chemicals Handled

• HF - Hydrofluoric acid
• HCl - Hydrochloric acid
• H2O2 - Hydrogen peroxide
• KOH - Potassium hydroxide
• HNO3 - Nitric acid
• NH4OH - Ammonium hydroxide
• H2SO4 - Sulfuric acid

Applications

• Semiconductor
• Photovoltaic
• Solar energy
• Liquid crystal panel
• Optical fiber
• Other production fields requiring ultra-clean chemical handling

Function Of CDM and CDS

• Chemical filtration
• Chemical sampling
• Chemical circulation
• Chemical delivery

Features / Technical specifications

• Construction: 316L stainless steel electropolished internal piping (5Ra finish) to prevent particle entrapment and ion leaching
• Automation: PLC-controlled system, HMI touchscreen, recipe control for CDM mixing and dilution
• Safety: Nitrogen blanketing for organic solvents, automatic leak detection, secondary containment, automatic safety shut-off and alarms
• Monitoring: Non-contact level sensors and status display for valves and pipelines
• Connections: UPW JIS 16A bonding; SS316 1/2" SWG for purge and compressed air
• Power: Control cabinet 220 VAC, 50 Hz, 0.5–3 kW with leakage protection
• Optional features: High-efficiency filter, door sensor, code scanner and multi-signal input support
