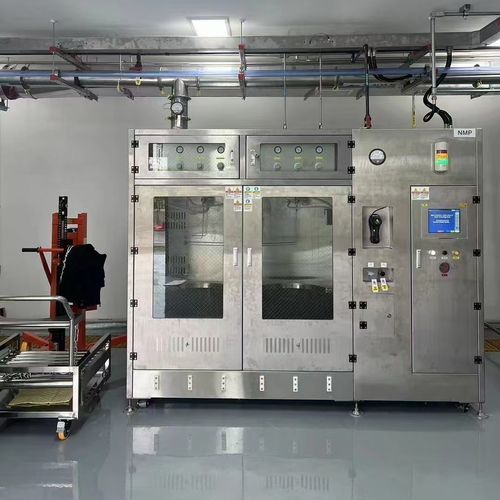

Dosing station JW series

Overview
Shenzhen Jewellok Technology Co., Ltd. offers automated ultra-high-purity chemical handling solutions including the Chemical Delivery Module (CDM) and Chemical Delivery System (CDS). The CDS automates bulk transfer from storage to facility using electropolished 316L piping; the CDM provides point-of-use blending, dilution and precise metering. Both systems include automated leak detection and non-contact level monitoring to maintain safety and process purity.

Technical Data

• Models: JW-200L-CDM, JW-1000L-CDM
• Special gas cabinet (double-drum examples): W2200×D1500×H2000 / W2990×D2100×H2000
• Control cabinet power: 220VAC, 50Hz, 0.5–3 kW with leakage protection
• Purge: Nitrogen (PN2), SS316 1/2" SWG
• Ultra-pure water: UPW, JIS 16A connection
• Compressed dry air: CDA, SS316 1/2" SWG
• Waste outlet options: PP DN20 or PP DN25 fusion socket drains

Standard equipment and features

• PP outer shell with transparent PVC observation window
• PFA-lined internal piping and valves for wetted surfaces
• Nitrogen purging for inerting and bubble prevention
• Sampling port for process control and QA
• Fully automatic acid supply and left/right drum auto-switching
• Pump configuration: two duty + one backup with automatic level-based switching
• Touch screen showing valve and pipeline liquid-supply status
• Automatic cut-off, early warning and alarm for system components
• Self-check routines and multiple safety confirmations
• Simple system architecture with multi-language HMI and multiple signal inputs
• Optional accessories: barcode/code scanner, high-efficiency filter, door sensor

Applications

• Semiconductor manufacturing
• Photovoltaic and solar cell production
• LCD / flat panel display production
• Optical fiber fabrication
• Other precision chemical process industries

Speciality Chemicals Handled

• HF — Hydrofluoric acid
• HCl — Hydrochloric acid
• H2O2 — Hydrogen peroxide
• KOH — Potassium hydroxide
• HNO3 — Nitric acid
• NH4OH — Ammonium hydroxide
• H2SO4 — Sulfuric acid

Functions

• Filtration
• Sampling
• Circulation
• Delivery (point-of-use supply and transfer)

Technical Specifications

• Models: JW-200L-CDM, JW-1000L-CDM
• Cabinet dimensions (double-drum examples): W2200×D1500×H2000 and W2990×D2100×H2000
• Control cabinet power: 220VAC, 50Hz, 0.5–3 kW with leakage protection
• Purge gas: Nitrogen (PN2) via SS316 1/2" SWG
• UPW connection: JIS 16A
• Compressed dry air: CDA via SS316 1/2" SWG
• Waste outlets: PP DN20 or DN25 fusion socket
• Wetted materials: electropolished 316L stainless steel or high-grade fluoropolymers (PFA)
• Pumping: nitrogen-pressure or magnetically driven pumps to ensure bubble-free delivery
• Automation: PLC logic, touch-screen HMI, automatic barrel changeover
• Safety: real-time leak detection, alarms, automatic shutoff, fire-suppression interface support
• Optional accessories: high-efficiency filters, door sensors, barcode/code scanner
