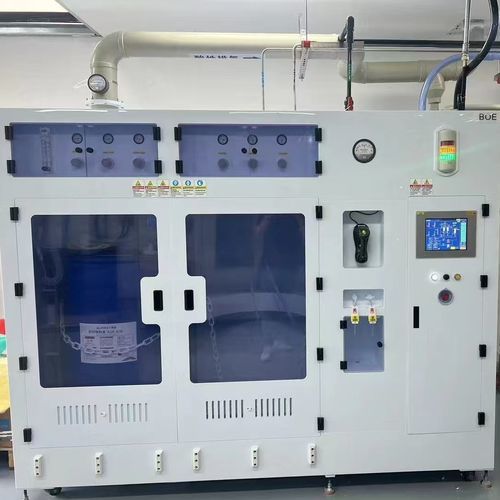

Dosing station JW-300-LDS

Custom Chemical Delivery System (CDS) Engineering for Hazardous Etchants and Volatile Organic Solvent Distribution Systems
When handling hazardous etchants and volatile organic solvents, safety and material compatibility are the non-negotiable foundations of facility engineering. A Custom Chemical Delivery System (CDS) is specifically designed to manage these high-risk fluids, ensuring they are transported from bulk storage to production tools without compromising personnel safety or environmental integrity.

Materials & contamination control
For aggressive acids such as Hydrofluoric (HF), custom engineering commonly uses PFA-lined piping or high-grade 316L electropolished stainless steel to prevent corrosion and metallic ion leaching. Systems are configured for ultra-high purity (parts-per-trillion) requirements using 316L electropolished stainless steel with a 5Ra surface finish to minimize particle shedding and ensure chemical inertness throughout fluid paths.

Safety, automation & containment
The intelligence of the custom Jewellok CDS is in its automated safety architecture. Every system includes secondary containment (pipe-within-a-pipe or cabinet-within-a-cabinet) coupled with high-sensitivity leak detection. Managed by a centralized PLC (Programmable Logic Controller), the system can trigger immediate automated shutdown of pneumatic valves on leak or pressure anomaly. Additional measures include nitrogen blanketing for volatile solvents, automated leak detection, explosion-proof cabinet options and multi-tiered interlocks to protect personnel and product yield.

Technical Data

• Model — JW-300-LDS
• Special gas cabinet size — W1900*D800*H2100
• Control cabinet power supply — Control: 220VAC, 50Hz, 500W; Heating: 220VAC, 50Hz, 1-6KW
• Purge — PN2, 1/4" MVCJ
• High pressure holding — GN2 1/4" MVCJ
• Vacuum — 1/2" MVCJ
• VENT drain pipe — CDA driver, 1/4" SWG
• Pneumatic air source — OD 150MM, silane 810 m3/hr; others 204 m3/hr
• Cabinet ventilation — OD 150MM, silane 810 m3/hr; others 204 m3/hr
• Standard equipment — Automatic switching, automatic purging, explosion-proof cabinet design, explosion-proof self-locking door, explosion-proof glass observation window, leakage alarm, remote cut-off, negative pressure alarm
• Operation interface — 10" color touch screen

Optional

• UV/IR Flame Detector
• Cylinder heating
• Panel heating
• Ethernet communication module
• Weight Scale
• Excess Flow Switch
• Smoke Sensor Switch

Application

• Semiconductor
• Photovoltaic
• Solar energy
• Liquid crystal panel
• Optical fiber
• Other production fields

Speciality Chemicals Handled

• HF - Hydrofluoric acid
• HCL - Hydrochloric acid
• H2O2 - Hydrogen Peroxide
• KOH - Potassium Hydroxide
• HNO3 - Nitric acid
• NH4OH - Ammonium Hydroxide
• H2SO4 - Sulfuric acid

Function

• Liquid chemical filtration
• Liquid chemical sampling
• Liquid chemical circulation
• Liquid chemical delivering

Additional product details
Products include Chemical Delivery Modules (CDM) for point-of-use blending and dilution and bulk CDS solutions for large-scale distribution. Systems integrate UHP diaphragm valves with metal-to-metal seals and PLC-controlled automation for precise recipe management and predictive maintenance, targeting reduced downtime and >99.9% uptime.

Specifications / Technical specifications

• Model: JW-300-LDS
• Gas cabinet size: W1900*D800*H2100
• Control power supply: 220VAC, 50Hz, 500W; heating: 220VAC, 50Hz, 1-6KW
• Purge: PN2, 1/4" MVCJ
• High pressure holding: GN2 1/4" MVCJ
• Vacuum: 1/2" MVCJ
• VENT drain: CDA driver, 1/4" SWG
• Pneumatic air source & ventilation: OD 150MM, silane 810 m3/hr; others 204 m3/hr
• Operation interface: 10" color touch screen
• Standard equipment: automatic switching, automatic purging, explosion-proof cabinet design, leakage alarm, remote cut-off, negative pressure alarm
• Optional features: flame detectors, heating options, Ethernet module, weight scale, excess flow switch, smoke sensor
• Materials & finish: 316L electropolished stainless steel, 5Ra surface finish for UHP purity
