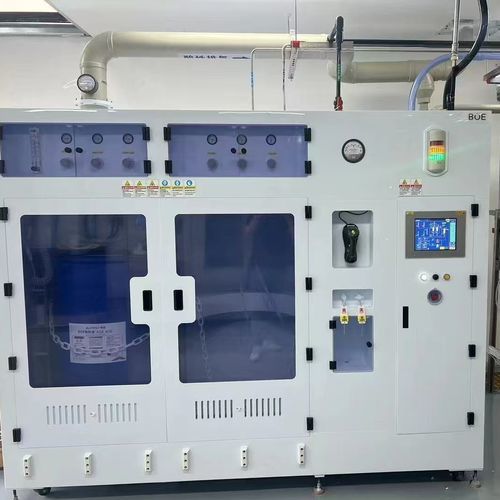

Automated Bulk Liquid Chemical Delivery System (BCDS) with PLC Controls for High-Volume Industrial Fluid Transport

The Automated Bulk Chemical Delivery System (BCDS) provides high-capacity, continuous chemical supply for high-volume manufacturing environments such as semiconductor fabs and EV battery plants. The system transports large daily volumes of process chemicals and delivers a pulse-free supply to point-of-use modules through PLC-based automation and redundant pump architecture.

PLC Automation and Operational Control
The integrated PLC monitors flow rates, line pressures and tank levels and adjusts pump speeds in real time for stable delivery. The control strategy supports recipe-based dosing, automatic barrel changeover and touchscreen HMI for status, setpoints and alarm handling — reducing manual interventions and contamination risk.

Safety, Materials and Purity
Safety logic in the PLC includes automated leak detection, rapid emergency shut-off and manifold isolation. Nitrogen blanketing is controlled for volatile solvents. Wetted parts are electropolished 316L stainless steel and PFA where specified to meet ultra-high purity requirements.

Technical Data
Model: JW-200L-CDM, JW-1000L-CDM
Special gas cabinet size: W2200*D1500*H2000 (double drums) / W2990*D2100*H2000 (double drums)
Control cabinet power supply: 220VAC, 50HZ, 0.5～3KW, leakage protection
Purge: PN2, SS316 1/2"SWG
Ultra-pure water: UPW, JIS 16A bonding
Compressed air: CDA, SS316 1/2"SWG
Waste outlet: Drain, PP DN20 Fusion Socket / Drain, PP DN25 Fusion Socket
Standard equipment: PP shell + transparent PVC observation window + PFA internal pipe valve, nitrogen purging, sampling, fully automatic acid supply, automatic left/right barrel switching; pump body configured as two-use plus one backup; automatic liquid supply switching by barrel liquid level; touchscreen HMI displays valve and pipeline liquid supply status; automatic fluid supply cutoff, early warning and alarms; multi-safety self-check and confirmation; multi-language support; supports multiple signal inputs, code scanner, high-efficiency filter, door sensor (optional).

Speciality Chemicals Handled

• HF – Hydrofluoric acid
• HCL – Hydrochloric acid
• H2O2 – Hydrogen peroxide
• KOH – Potassium hydroxide
• HNO3 – Nitric acid
• NH4OH – Ammonium hydroxide
• H2SO4 – Sulfuric acid

CDM and CDS Application

• Semiconductor
• Photovoltaic
• Solar energy
• Liquid crystal panel
• Optical fiber
• Other production fields

Function Of CDM and CDS

• Chemical filtration
• Chemical sampling
• Chemical circulation
• Chemical delivering

Caractéristiques / Spécifications techniques

• Models: JW-200L-CDM; JW-1000L-CDM
• Cabinet sizes (examples): W2200 × D1500 × H2000 (double drums); W2990 × D2100 × H2000 (double drums)
• Control cabinet power: 220 VAC, 50 Hz, 0.5–3 kW with leakage protection
• Purge gas: PN2 via SS316 1/2" SWG piping
• Ultra-pure water connection: UPW, JIS 16A bonding
• Compressed air: CDA via SS316 1/2" SWG
• Waste outlet options: PP DN20 or DN25 fusion socket drains
• Materials of wetted parts: electropolished 316L stainless steel and PFA internal piping where specified
• Standard features: nitrogen purging, sampling, automatic acid supply, automatic barrel changeover, redundancy pump configuration, touchscreen HMI, automated leak detection and emergency shut-off, multi-language HMI, multi-signal inputs, optional code scanner, optional high-efficiency filter and door sensor
• Operational capabilities: continuous monitoring and adjustment of flow, pressure and tank levels; recipe-controlled mixing/dilution at CDM; valve manifold box (VMB) isolation for servicing individual branch lines without stopping facility supply
• Safety protocols: non-contact level sensing, secondary containment, automatic shut-off and alarm logic, nitrogen blanketing for organic solvents
